CL-659B
CL-659B

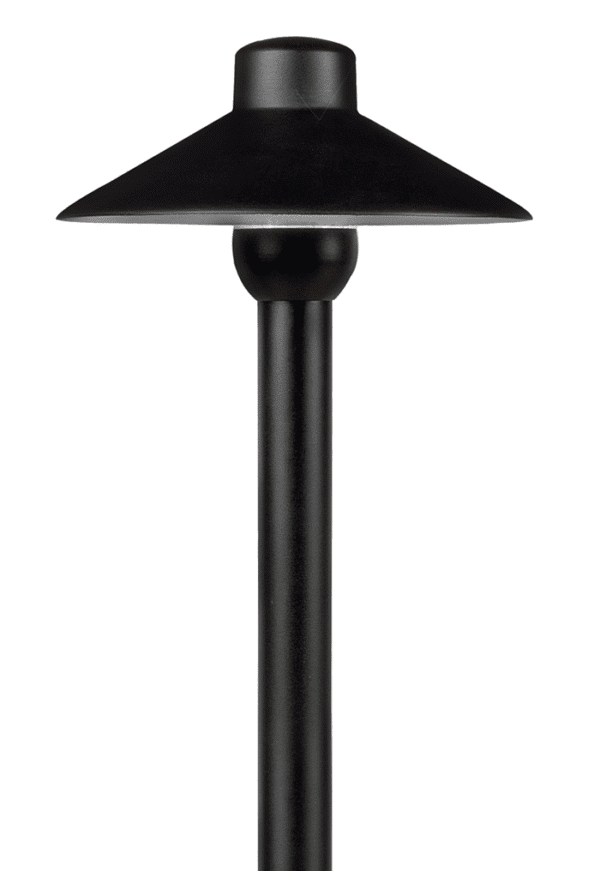

Brass Umbrella Style Area Light, With an 18″ Stem. Available in Antique Bronze, and Black Brass
Material: Brass
Style: Umbrella
Description: Brass Umbrella Area Light
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Standard injection molded spike with ½” NPT threaded female hub.
Grade: Architectural
Dimensions

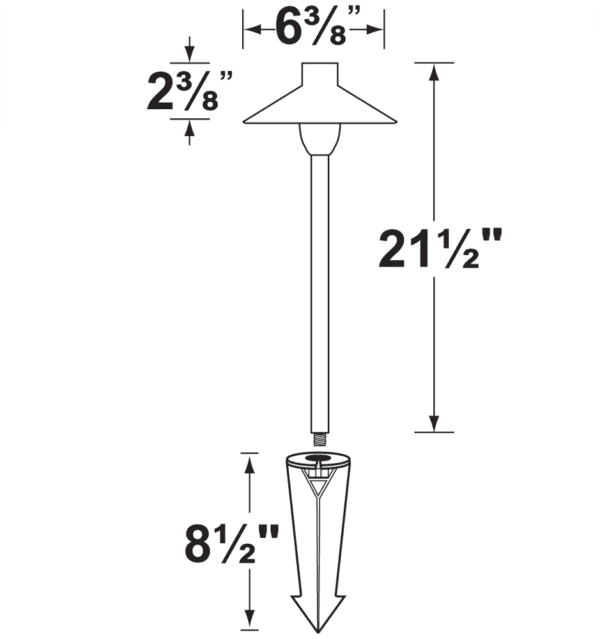

Dimensions: 6⅜" W x 21½ High
Ship Weight LBS: 3
Spec Sheets
Housing : Corrosion Resistant Cast Brass.
Lens : Clear and heat resistant polycarbonate
Fixture Socket : Top grade fixed ceramic bi-pin socket, with lamp
retention clip to securely hold lamp in place
Lamp : 12V, T3 LED Available in LED (2W & 2.5W) or without lamp. See Lamps tab for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Silicone filled direct burial wire nut (CX-854) and quick-locking connectors (CX-LOC) are available from Corona Lighting.
Gasket: Silicone double gasket for water tight sealing.
Mounting : Standard injection molded spike with ½” NPT threaded female hub.
Electrical : Voltage range for LED lamps are 8V-21V. A remote 12V transformer is required. Options are available from Corona Lighting.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-659B | Antique Bronze | See lamp guide suffix | |
| Black Brass | |||
| Example: | CL-659B | ||
