CL-654B

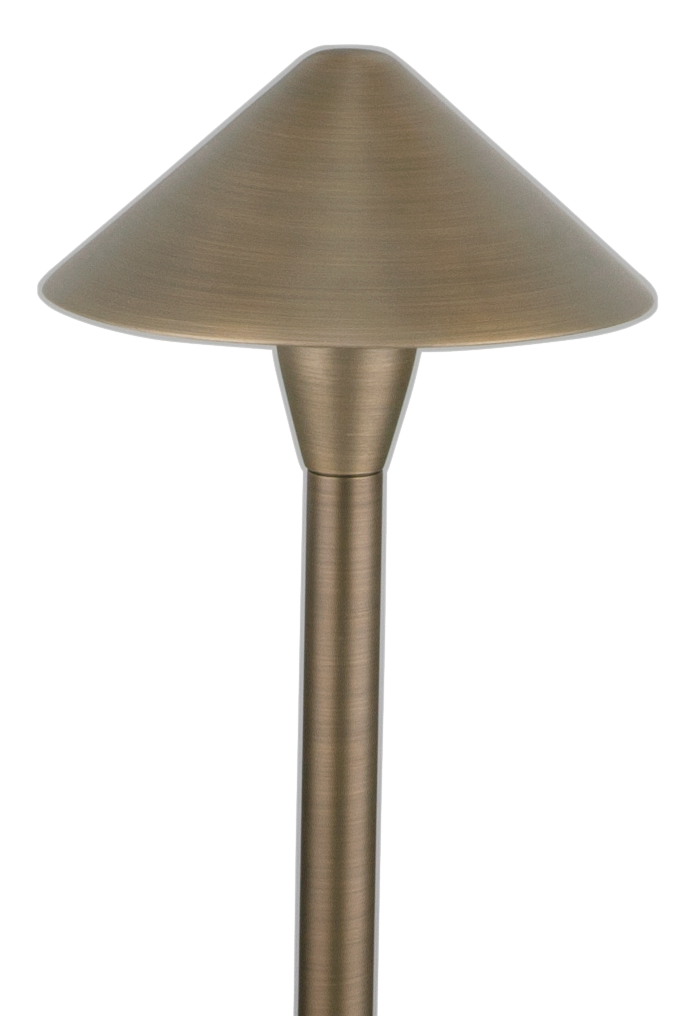

Large Brass 18″ Cone Path Light Finished in Antique Bronze. 12″ stem also available

Material: Brass
Description: Large cone path light
Lamp Type: SCB
Mounting Supplied: Plastic ground spike
Grade: Architectural

Dimensions

Size: 7⅞” Dia x 24” High
Ship Weight LBS: 5

Downloads

Document NamePDF File
CL-654B Specification Sheet download
Fixture
Lamps
Accessories
Housing : Cast brass shade and stem
STEM : 18" Cast brass pipe with ½” NPT on bottom. 12" and 24" stems also available
Lens : Clear glass, covers over lamp providing sprinkler water protection. Frosted lens (CX-308-FR) available.
Socket : S.C. Bayonet socket, tooless free lamp access.
Lamp : 12V S.C Bayonet LED. Available in 3W Bluetooth Mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for more information
Mounting : 8" Standard injection molded spike with ½" NPT threaded female hub.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 volt transformer is required. Visit the transformers page for our line of options
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor TempLight ColorRated HoursHalogen Equiv
L-EDBA-3W-BT0.5 - 3W360º360 Deg.10-2002200K-5700KColor Changing50,000
L-EDBA-2W2360°360 Deg.2002700KWarm White25,00020 Watt Halogen
L-EDBA-2W-3K2360°360 Deg.2103000KCool White25,00020 Watt Halogen
L-EDBA-AM2360°360 Deg.1702000KAmber25,00020 Watt Halogen
L-EDBA-2.5W2.5180°180 Deg.2402700KWarm White25,00035 Watt Halogen
L-EDBA-2.5W-3K2.5180°180 Deg.2503000KCool White25,00020 Watt Halogen
FixtureFinishFinish ColorLamp
CL-654BAntique BronzeSee lamp guide suffix
Example:CL-654B
