CL-395
CL-395
8¾” large aluminum louvered backless box, finished in Black or Bronze.
Material: Aluminum
Description: Large Louvered Backless Box Step Light
Lamp Type: Integrated LED
Light Source : Removable 5W LED module, 450 lumens, 3000K, 35W halogen equivalent. Rated hours: 30,000
Mounting Supplied: Surface
Grade: Architectural
Dimensions

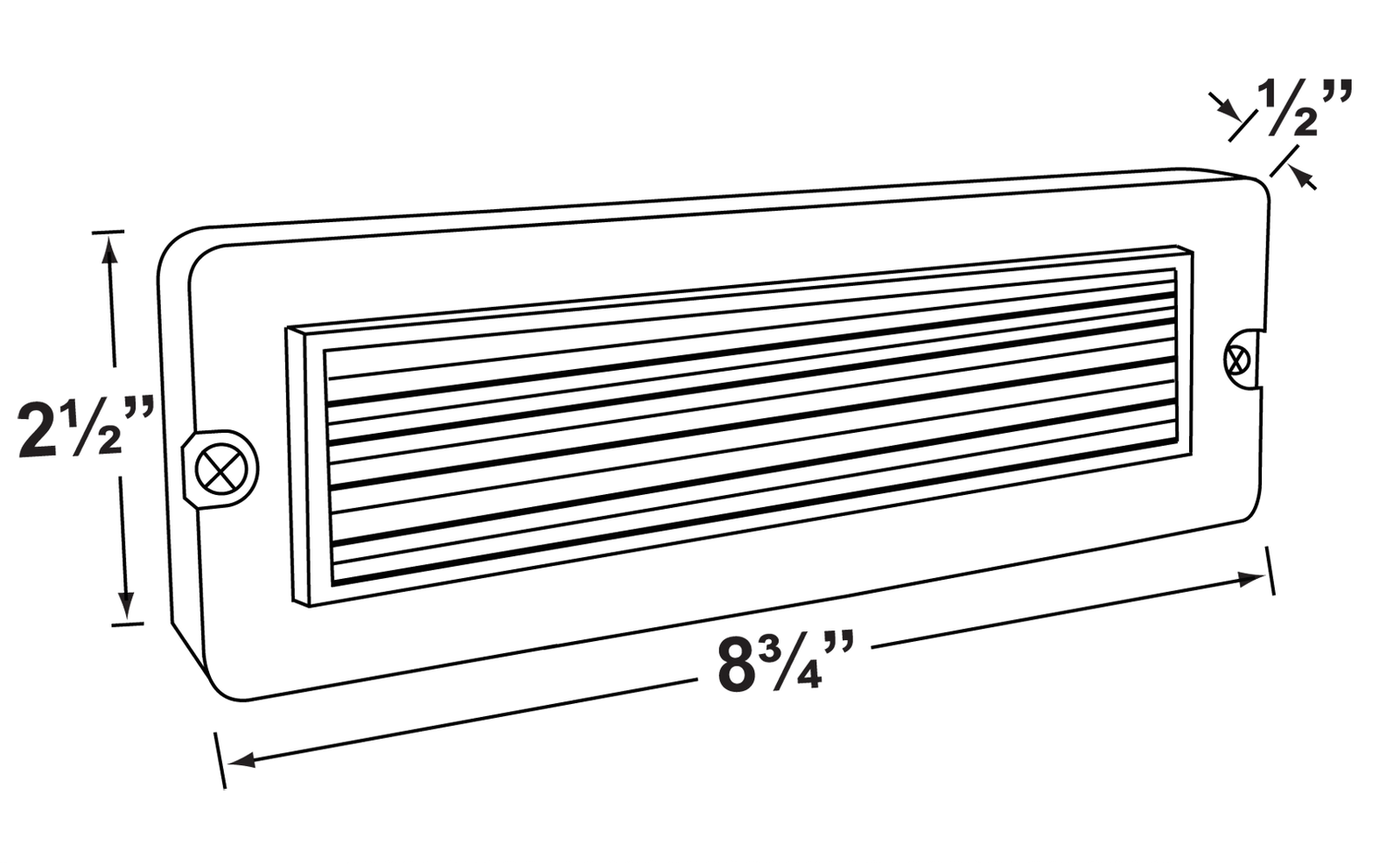

Size: 8¾” W x 2½” H x ½” D
Ship Weight LBS: 1.5
Downloads
Housing : Premium corrosion resistant diecast aluminum.
FACEPLATE : Diecast aluminum faceplate with frosted lens, fitted to stainless steel backplate.
Socket : Integrated removable 5W LED module.
Lamp :
Wiring : Fixture is prewired with a 25ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details. see accessories for details.
Mounting : Surface mounted on walls or steps. Best used on concrete, brick, or other masonry surfaces. Two screws and anchors are provided.
Electrical : Integrated removable LED module is dimmable. Not for use with electronic transformers. Visit transformers page for our line of options. Voltage range for LED module is: 8 -15Volt AC Ambient temperature: -40°F to 124°F. CRI: Ra > 80 Proper grease/lubricant is suggested on threaded parts during installation process. Increasing voltage above 12 volts AC may decreased life of LED cores
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-395 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-395 | ||
