CL-374B
CL-374B

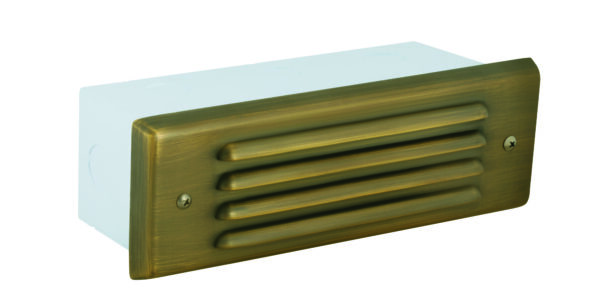

4 Louver Brick Light available in Brass with Antique Bronze color finish.
Material: Brass
Style: 4 Louver Brick Light
Description: 4 Louvered Boxed Step Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural

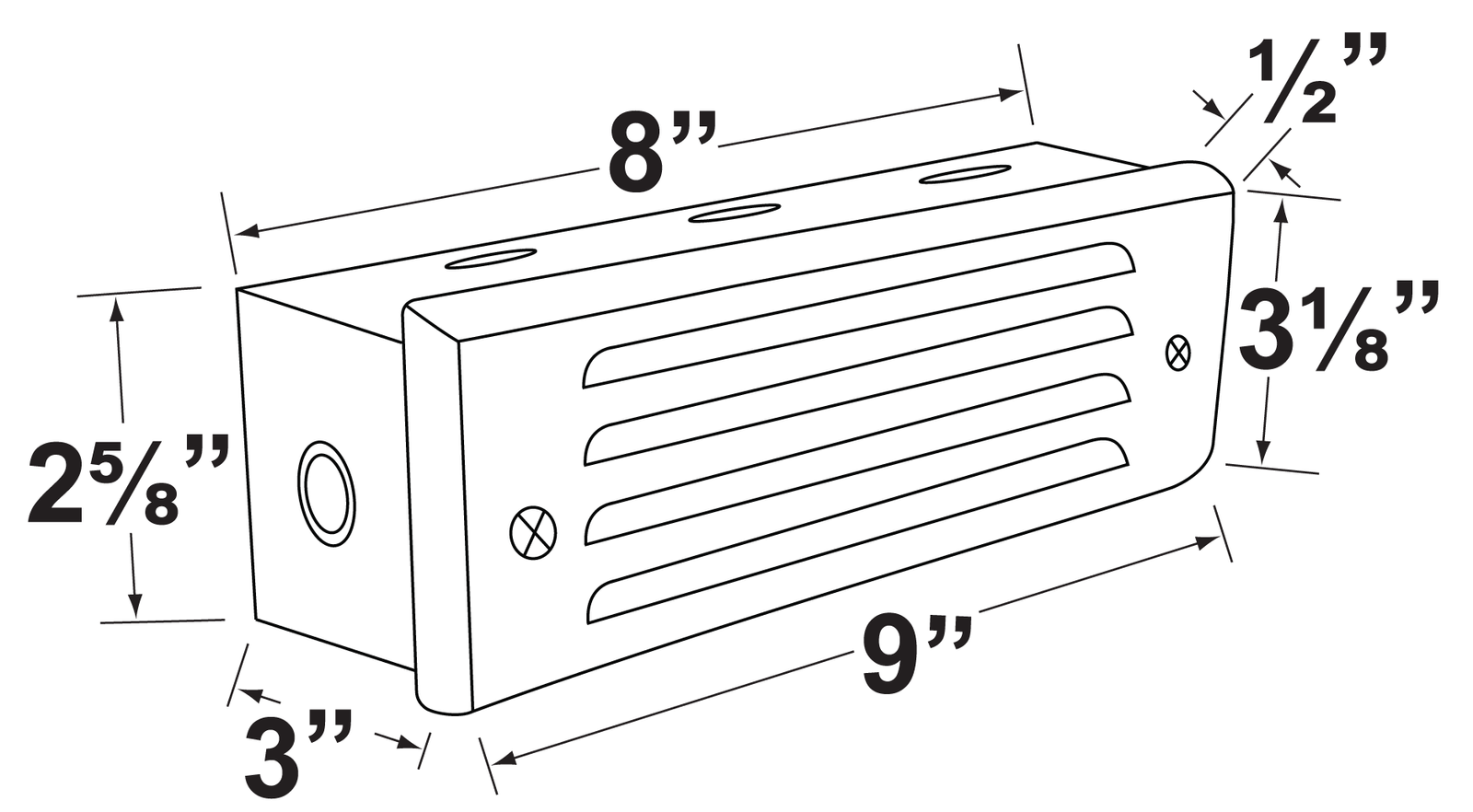

Dimensions
Dimensions: 9” W x 3⅛” H (Faceplate)
Ship Wight LBS: 2
Spec Sheet
| Product Name | Spec Sheet |
|---|---|
| CL-374B | download |
Housing : Heavy duty corrosion resistant galvanized steel with self-leveling adjustable bars. White powder coated.
Lens : Frosted and heated resistant glass.
Fixture Socket : Two S.C. Bayonet socket, attached to aluminum reflector.
Lamp : 12V, SCB, 27W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold seperately. Silicone filled wire nut (CX-854) are availble.
Gasket: Silicone gasket seals faceplate to housing. Providing weather tight protection.
Mounting : Recessed mount back box, with 5x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-374B | Antique Bronze | See lamp guide suffix | |
| Example: | CL-374B | ||
