CL-367
CL-367

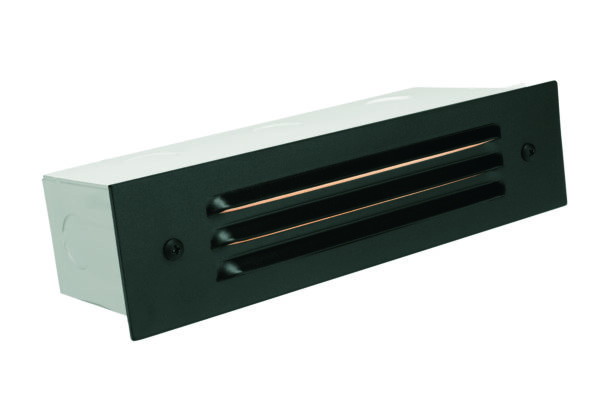

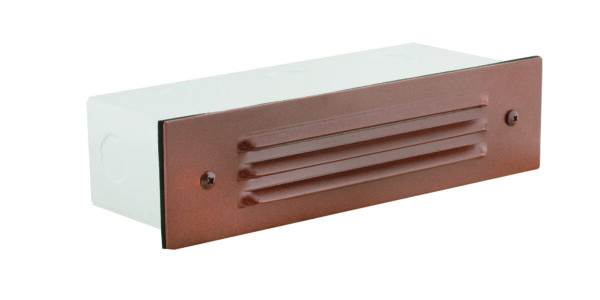

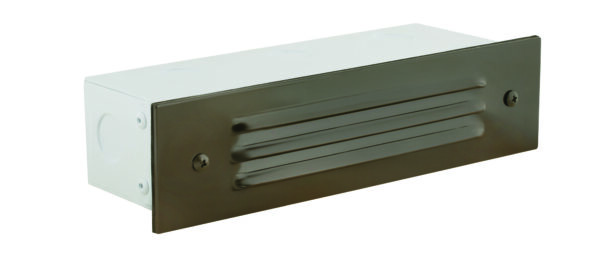

Stamped aluminum 3-Louver Brick Light with a self-levelling heavy duty steel mount box. Faceplate finished in Black, Bronze, Rust, or White.
Material: Aluminum
Description: Aluminum 3 louvered Step Light
Lamp Type: SCB
Mounting Supplied: Surface mounted
Grade: Architectural
Dimensions
Size: 9” W x 2¼” H (Faceplate)
Ship Weight LBS: 4
Downloads
Housing : White powder coated steel mount box with double S.C. bayonet sockets.
Lens : High impact white polycarbonate sealed and secured to faceplate.
Socket : Two S.C. Bayonet socket, attached to aluminum reflector.
Lamp : 12V S.C Bayonet LED. Available in 3W Bluetooth Mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 12 inch direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting, see accessories for more information. See accessories for details. See accessories for details
Mounting : Recessed mount back box, with 5" x ½" NPT inlets.
APPLICATIONS : Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 Volt transformer is required. Visit transformers page for our line of options.
WARRANTY : Five (5) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-367 | Black | See lamp guide suffix | |
| Bronze | |||
| Rust | |||
| White | |||
| Example: | CL-367 | ||
