CL-366
CL-366

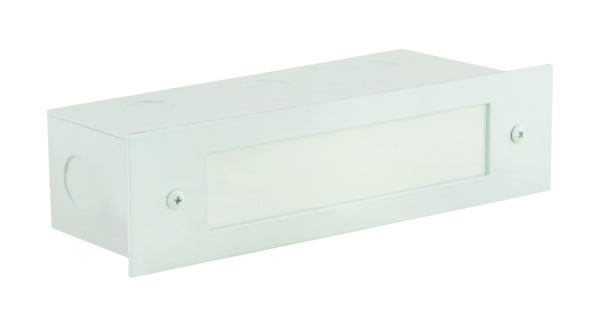

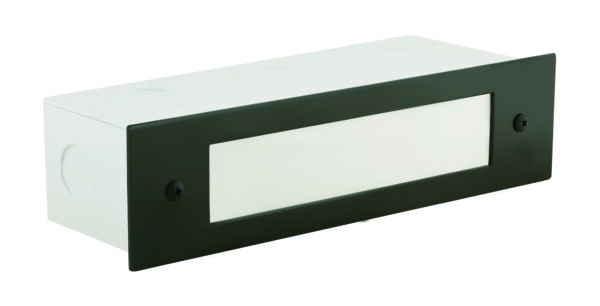

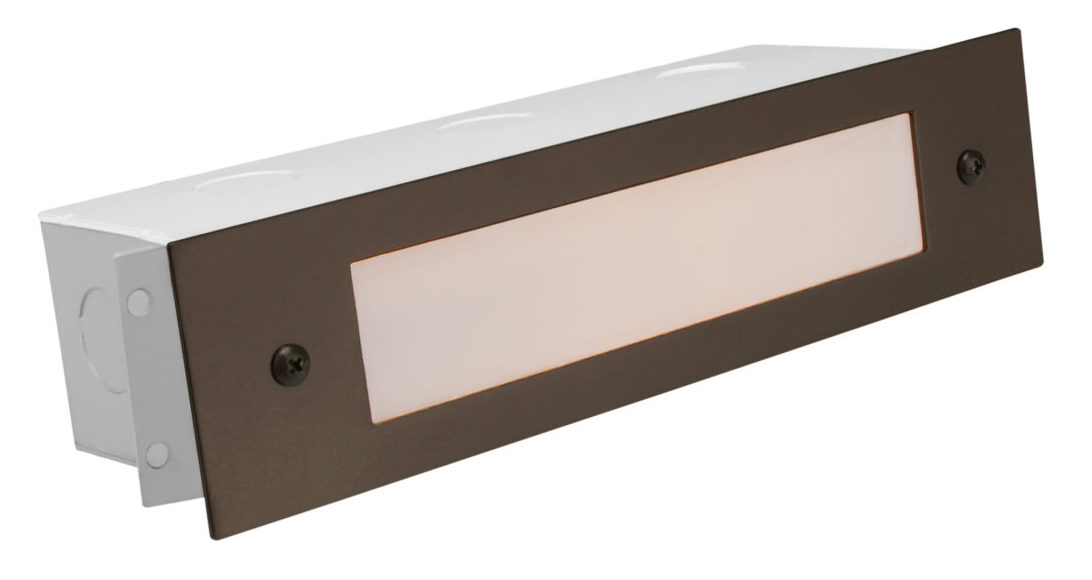

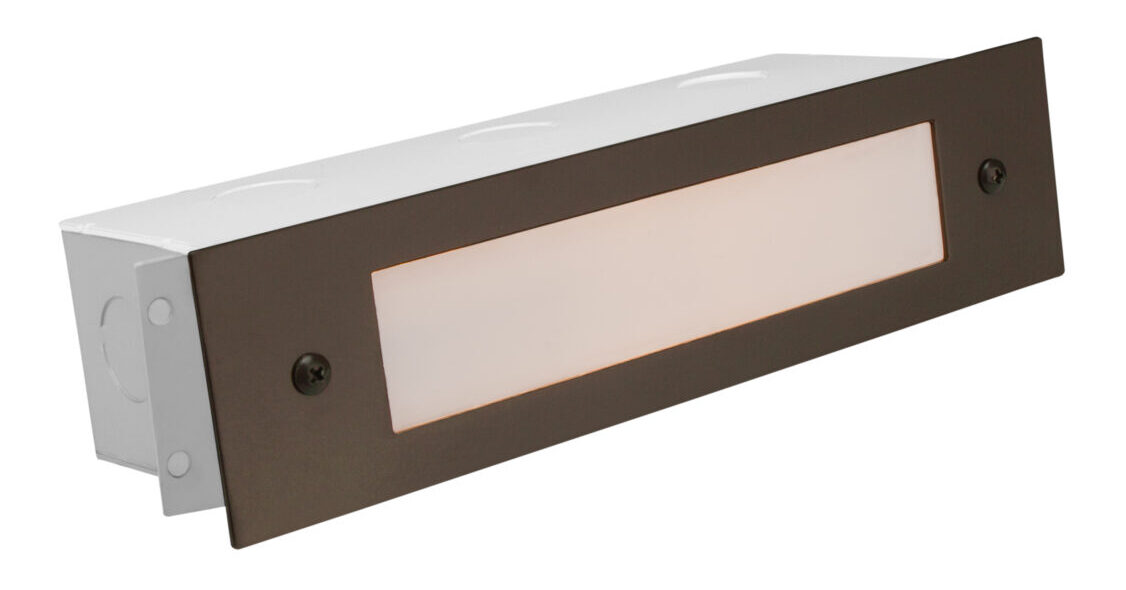

Lensed Brick Light available in Aluminum with Bronze, Rust, & White color finishes.
Material: Aluminum
Description: Lensed Boxed Step Light with Frosted Lens
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural

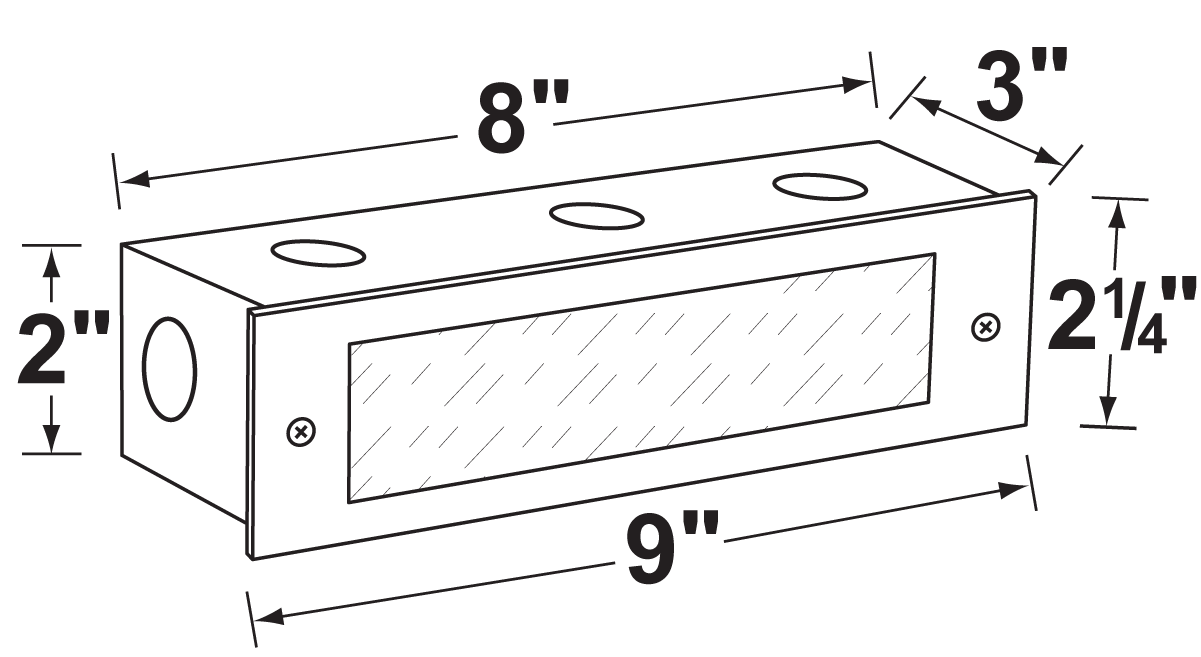

Dimensions
Size: 9” W x 2¼” H (Faceplate)
Ship Weight LBS: 4
Downloads
Housing : White powder coated steel mount box with double S.C. bayonet sockets.
Lens : High impact white polycarbonate sealed and secured to faceplate.
Socket : Two S.C. Bayonet socket, attached to aluminum reflector.
Lamp : 12V, SCB, 27W (halogen) max.
Wiring : Fixture is prewired with a 12 inch direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Mounting : Recessed mount back box, with 5x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Five (5) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-366 | Bronze | See lamp guide suffix | |
| Rust | |||
| White | |||
| Example: | CL-366 | ||
