CL-362C
CL-362C

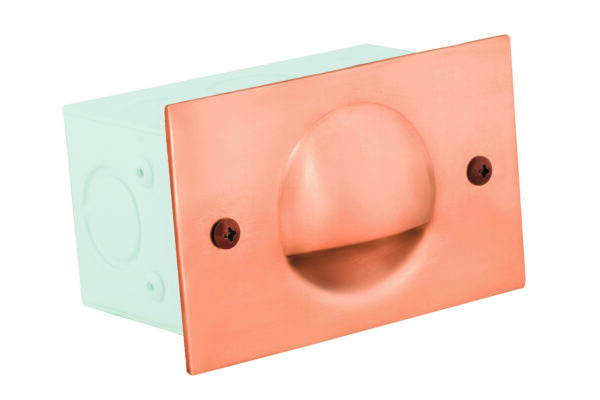

Half-Moon Step Light available in Copper with Raw Copper color finish.
Material: Copper
Description: Half-Moon Boxed Step Light
Lamp Type: Single Contact Bayonet
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural
Dimensions
Size: 4⅜” W x 2¾” H (Faceplate)
Ship Weight LBS: 2
Downloads
Housing : White powder coated steel mount box with S.C. bayonet socket.
Lens : High impact white polycarbonate sealed and secured to faceplate.
Socket : Top grade, fixed S.C. Bayonet socket.
Lamp : 12V S.C Bayonet LED.
Available in 3W Bluetooth Mesh RGB-WW;
2W, 2.5W LED or without lamp.
See the Lamp Guide below for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold separately.
Quick-locking connectors (CX-LOC) are available
from Corona Lighting.
Mounting : Recessed mount back box, with 3x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : A remote 12V transformer is required. Options are
available from Corona Lighting.
Voltage range for BT lamps are 9-17V, LED are 8-21V.
Proper grease/lubricant is suggested on
threaded parts during installation process.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
No matching lamps found.
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-362C | Raw Copper | See lamp guide suffix | |
| Example: | CL-362C | ||
