CL-361B
CL-361B

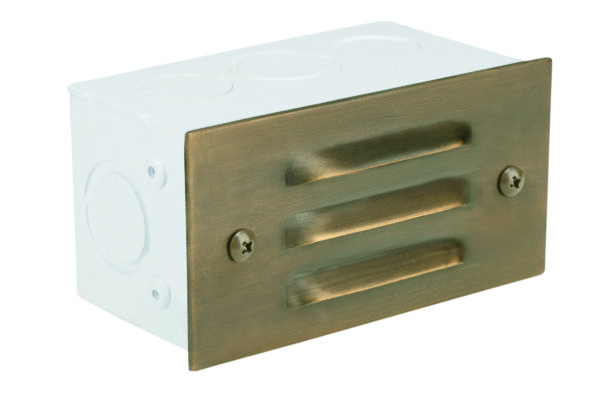

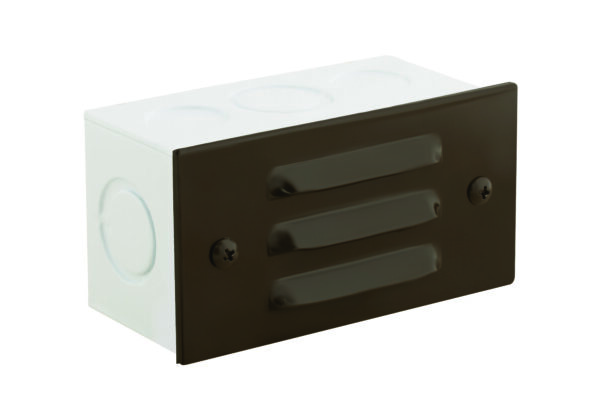

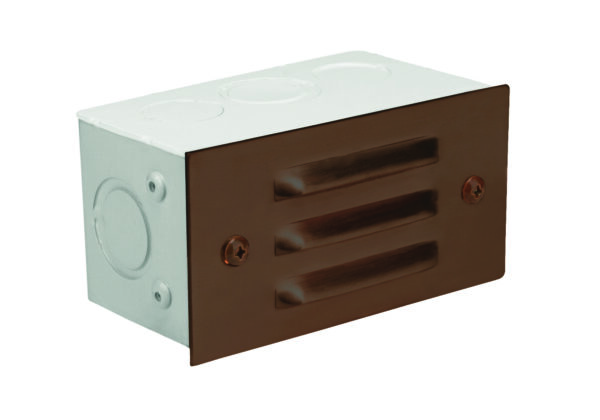

Stamped brass 3-louver Step Light, with a white powder coated steel mount box. Finished in Antique Bronze, Gun Metal or Old Copper.
Material: Brass
Description: Brass 3 Louvered Step Light
Lamp Type: SCB
Mounting Supplied: Surface Mount
Grade: Architectural
Dimensions

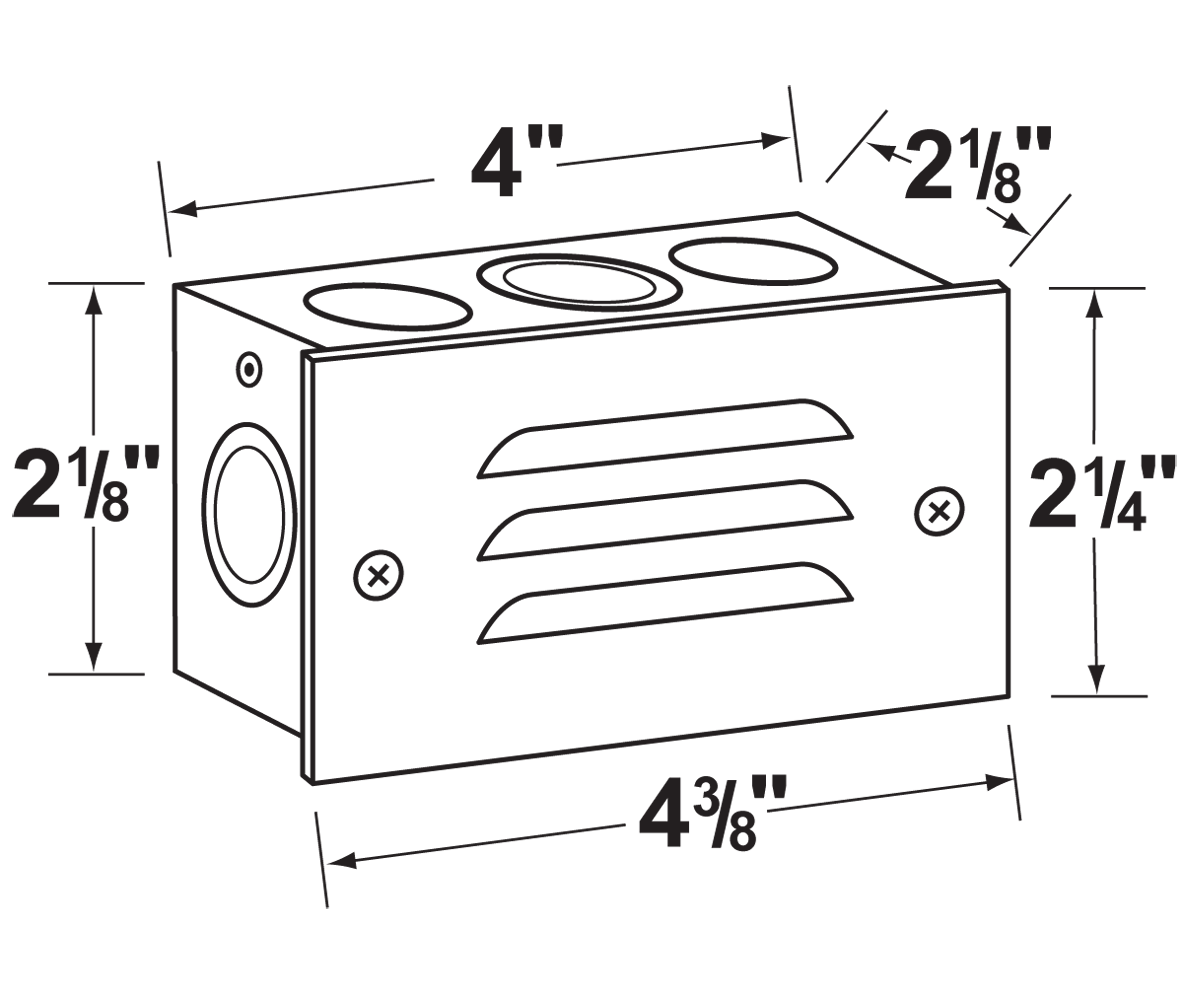

Size: 4⅜” W x 2¼” H (Faceplate)
Ship Weight LBS: 2
Downloads
Housing : White powder coated steel mount box with S.C. bayonet socket.
FACEPLATE : Stamped brass
Lens : High impact white polycarbonate sealed and secured to faceplate.
Socket : Top grade, fixed S.C. Bayonet socket.
Lamp : 12V S.C Bayonet LED. Available in 3W Bluetooth Mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamps tab above for more information.
Wiring : Fixture is prewired with a 12 inch direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Recessed box to mount into concrete, two screws are provided.
APPLICATIONS : Best used on concrete, brick, or other masonry surfaces. Outdoor use only.
Electrical : A remote 12V transformer is required. Options are available from Corona Lighting. Visit the transformers page for our line of options Voltage range for BT lamps are 9-17V, LED are 8-21V. Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-361B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Old Copper | |||
| Silver Plated | |||
| Example: | CL-361B | ||
