CL-351
CL-351

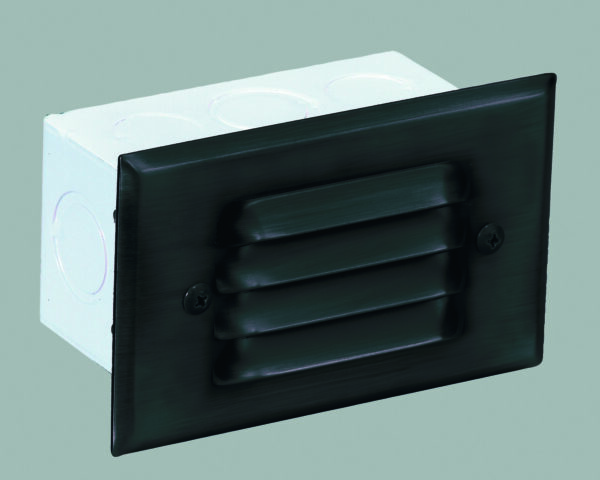

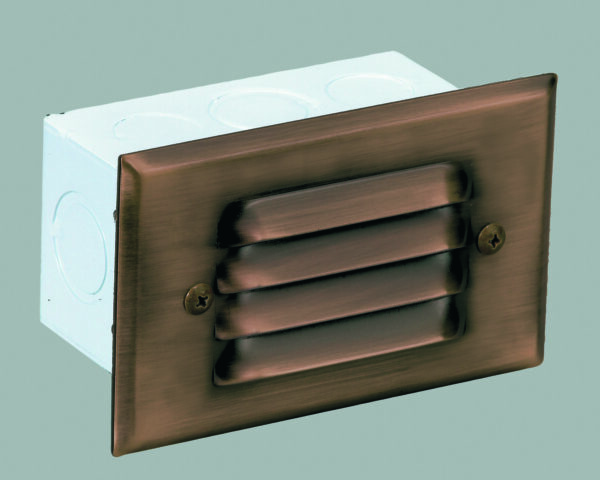

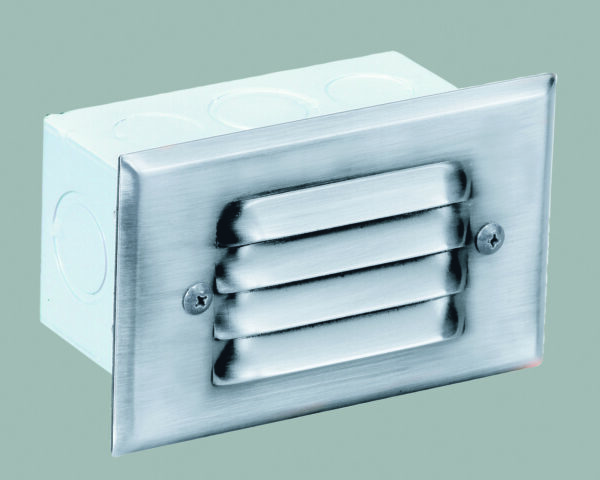

Aluminum 4-louver Step Light with a white powder coated steel mount box. Faceplate finished in Black, Bronze, White or Sliver Plated.
Material: Aluminum
Description: 4-Louvered Step Light
Lamp Type: SCB
Mounting Supplied: Surface mounted
Grade: Value
Dimensions

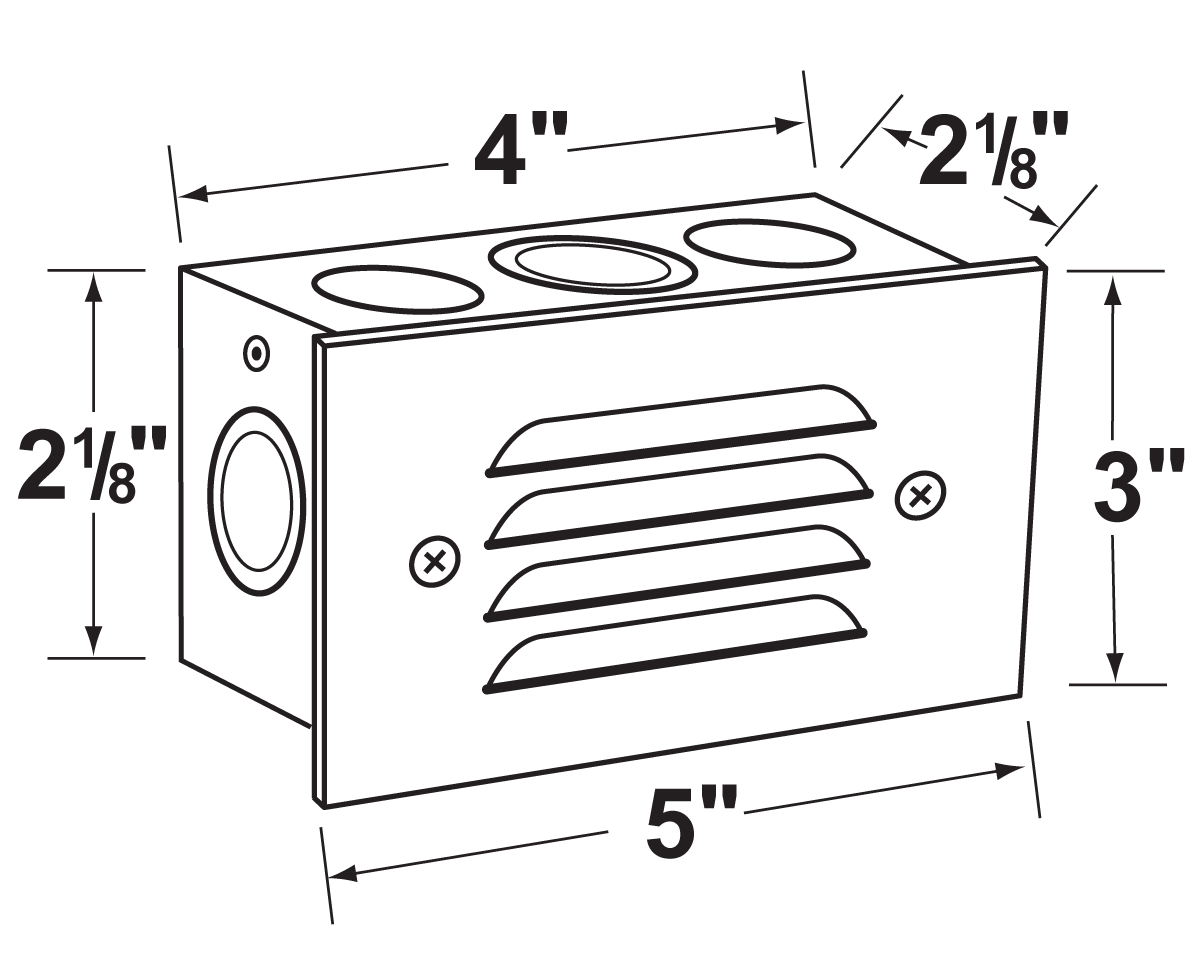

Size: 5” W x 3” H (Faceplate)
Ship Weight LBS: 1.5
Downloads
Housing : White powder coated steel mount box with S.C. bayonet socket.
Lens : Tempered, and heat resistant glass. Lenses are sealed and secured to faceplates.
Socket : Top grade fixed S.C. Bayonet socket.
Lamp : 12V S.C Bayonet LED.
Available in 3W Bluetooth Mesh smart RGB-WW; 2W, 2.5W LED or without lamp.
Find the Lamps tab above for more information.
Wiring : Fixture is prewired with a 12 inch direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for more information
Mounting : Recessed mounting box
APPLICATIONS : Mount into concrete, brick or masonry. Outdoor use only.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options
WARRANTY : One (1) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360° | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360° | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360° | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360° | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180° | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180° | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-351 | Black | See lamp guide suffix | |
| Bronze | |||
| Silver Plated | |||
| White | |||
| Example: | CL-351 | ||
