CL-344B
CL-344B

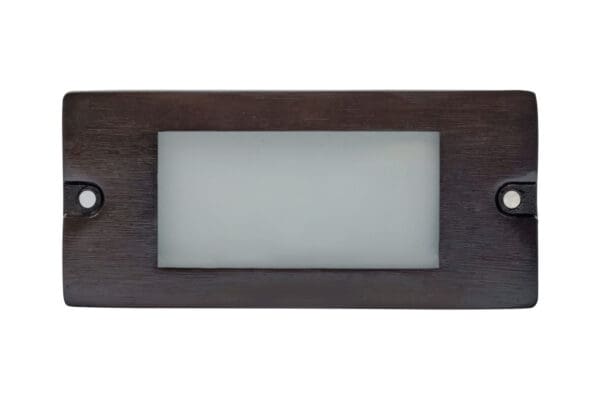

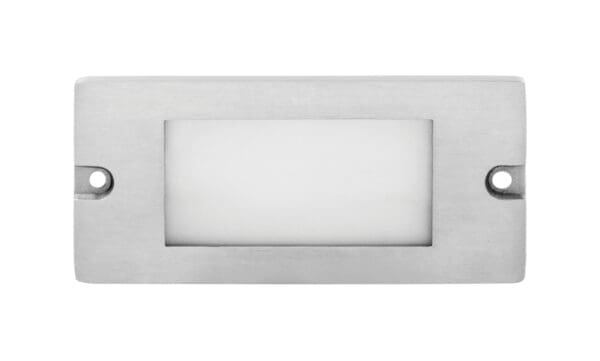

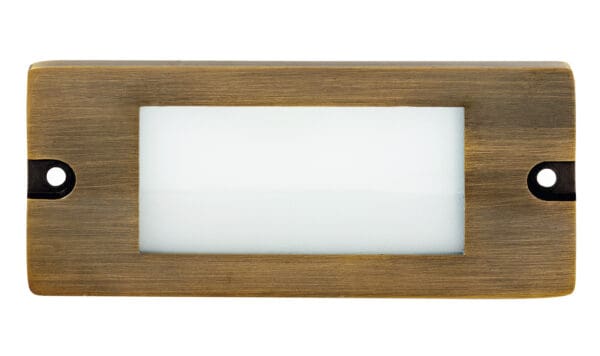

5½” Small brass lensed backless Step Light, finished in Antique Bronze, Gun Metal or Silver Plated
Material: Brass
Description: Integrated LED Brass lensed backless Step Light
Lamp Type: Integrated LED
Light Source : 2.5W Integrated LED
Mounting Supplied: Surface mounted
Grade: Architectural
Dimensions

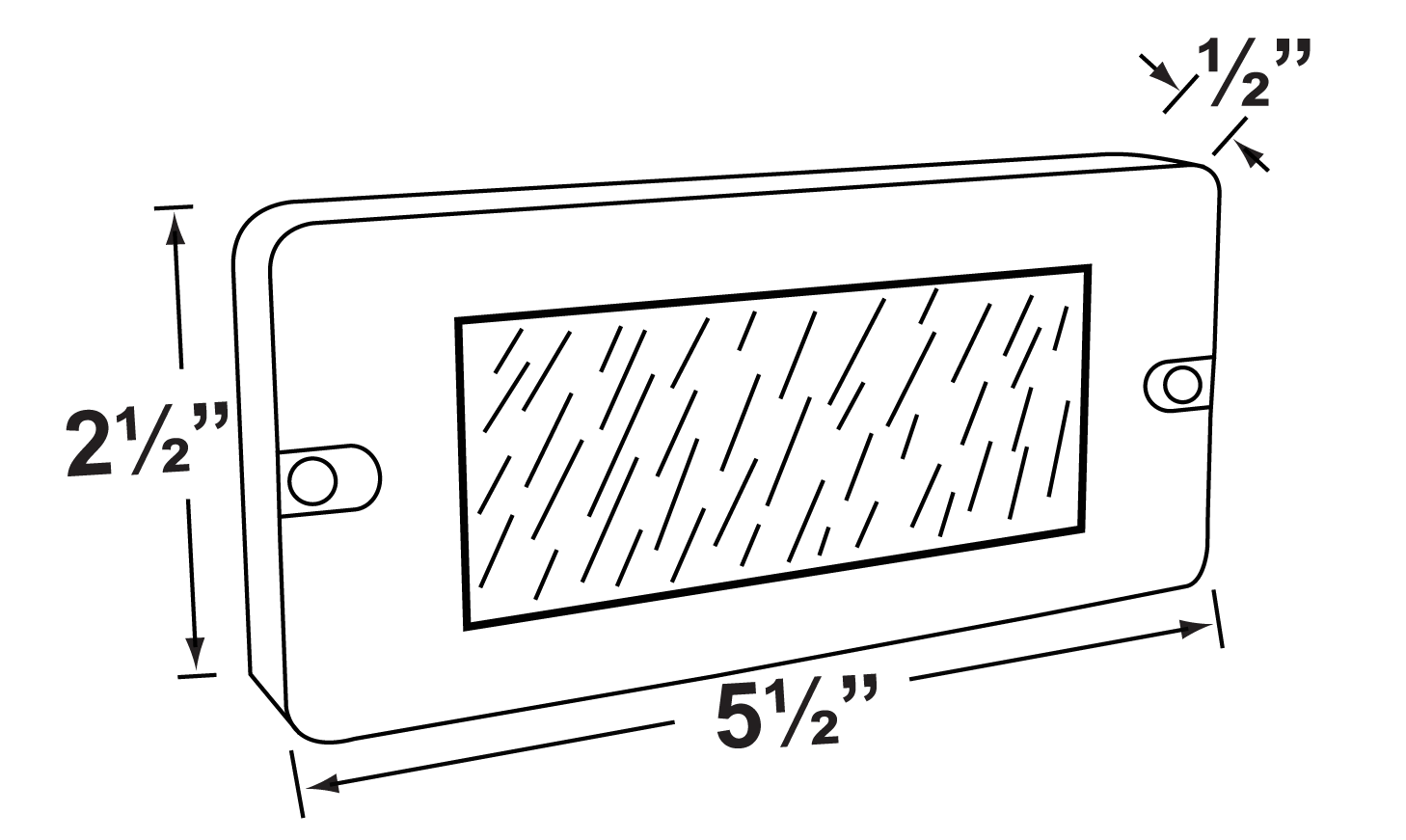

Size: 5½” W x 2½” H x ½” D
Ship Weight LBS: 2
Downloads
Housing : Heavy duty corrosion resistant cast brass. NO BACKBOX REQUIRED.
Lens : Frosted lens, fitted to stainless steel backplate.
Socket : Removable 2.5W LED module.
Lamp : 12V, 2.5 Watt, 250 lumens, 3000K, 20W halogen equivalent. Rated hours 30,000.
Wiring : Fixture is prewired with a 25ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Surface mounted on walls or steps. Two screws and anchors are provided.
APPLICATIONS : Best used on concrete, brick, or other masonry surfaces.
Electrical : Integrated LED module is dimmable. A remote 12V magnetic transformer is required. Not for use with electronic transformers. See the transformers page for our line of options.
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-344B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Silver Plated | |||
| Example: | CL-344B | ||
