CL-342B
CL-342B

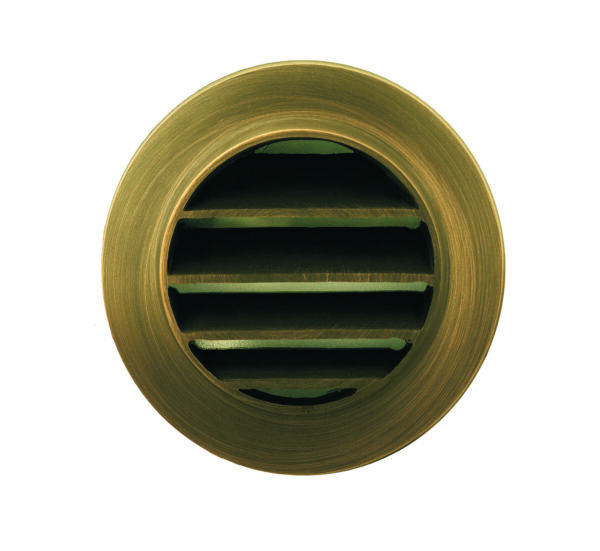

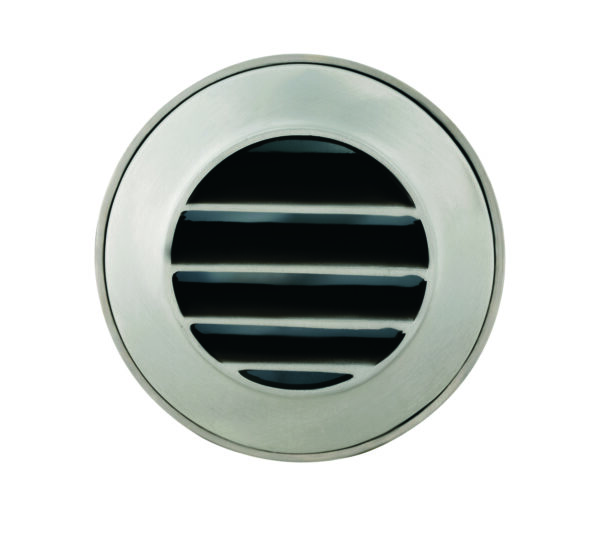

Brass4-louvered Disc step light finished with Antique Bronze(T3), Gun Metal(T3), Natural Brass(T5) or Silver Plated(T5).
Material: Brass
Description: Brass louvered disc step light
Lamp Type: T3
Mounting Supplied: Surface Mount
Grade: Architectural
Dimensions
Size: 3⅜” Dia x 1¾” Deep
Ship Weight LBS: 2
Downloads
Housing : Corrosion Resistant Cast Brass.
Lens : Frosted and heat resistant flat glass.
Socket : Top grade bi-pin socket(AB/GM) or .Top grade fixed T5 wedge socket.(BR/SI)
Lamp : 12V T3 LED. Available in 3W Bluetooth mesh smart RGB-WW; 2W, 2.5W LED or without lamp.(AB/GM) or 12V T5, 18W max. Available in 1.5W LED or without lamp(BR/SI) Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 18-2 SPT1-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Surface mounted includes mounting plate. Best used on concrete, brick, or other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W-BT (717 Series Only) | 0.5 - 2 | 360º | 360 Deg. | 10-120 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-3W-BT | 0.5 - 3 | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-342B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Silver Plated | |||
| Example: | CL-342B | ||
