CL-331

CL-331

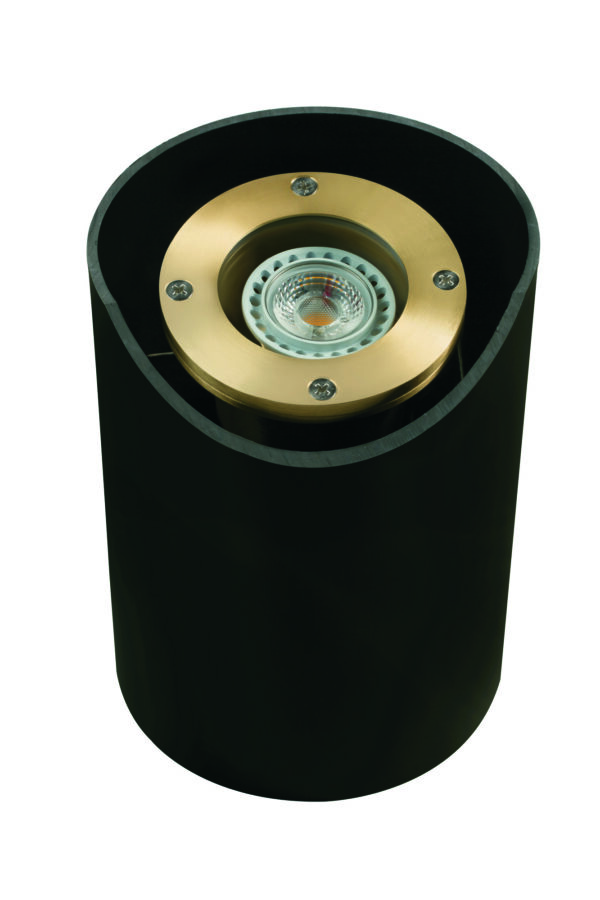

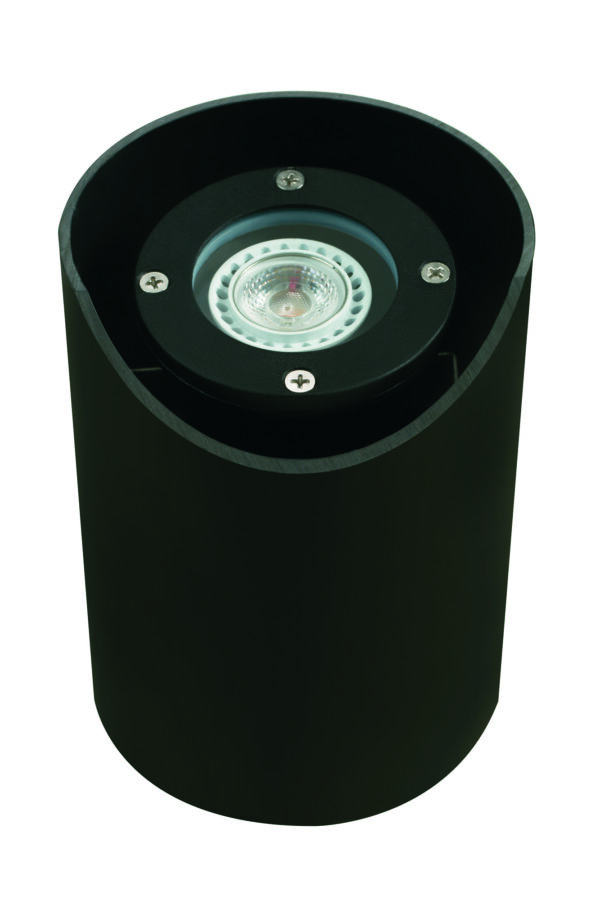

Adjustable Lensed Well Light available in Aluminum, Composite & Natural Brass with Black & Natural Brass color finishes.

This product is currently out of stock and unavailable.

Material: Aluminum, Composite & Natural Brass
Style: Adjustable Lensed Well Light
Description: Adjustable Lensed Well Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: PVC Sleeve
Grade: Value

Dimensions

Dimensions: 5½” Dia x 8” Deep
Ship Wight LBS: 4

Spec Sheet

Product NameSpec Sheet
CL-331-BR download
CL-331-BK download
CL-331-NM download
Housing : Suspended inside a reversible flat or angled cut PVC sleeve, provides in-ground support. Fixture is adjustable inside the PVC sleeve for light aiming.
Lens : Clear, tempered and heat resistant glass with a silicone gasket.
Fixture Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V MR-16, 50W (halogen) max.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone gasket, tightly sealing lens to housing to provide weather-tight protection.
Mounting : In-ground direct burial or concrete encasement.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-ED16-3W-FL3.545° FLFlood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-WF3.560° WFWide Flood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-SP3.515° SPSpot2702700KWarm White50,00025 Watt Halogen
L-ED16-5W-SP515° SPSpot3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-FL545° FLFlood3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-WF560° WFWide Flood3502700KWarm White50,00040 Watt Halogen
L-ED16-COB5W-SP515° SPSpot4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-FL538° FLFlood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-WF560° WFWide Flood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-SP3K515° SPSpot4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-FL3K538° FLFlood4703000KCool White50,00050 Watt Halogen
L-ED116-COB5W-WF3K560° WFWide Flood4703000KCool White50,00050 Watt Halogen
L-ED16-6W-SP615° SPSpot6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-FL638° FLFlood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-WF660° WFWide Flood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-SP-3K615° SPSpot6003000KCool White50,00075 Watt Halogen
L-ED16-6W-FL-3K638° FLFlood6003000KCool White50,00075 Watt Halogen
L-ED16-6W-WF-3K660° WFWide Flood6003000KCool White50,00075 Watt Halogen
