CL-328
CL-328

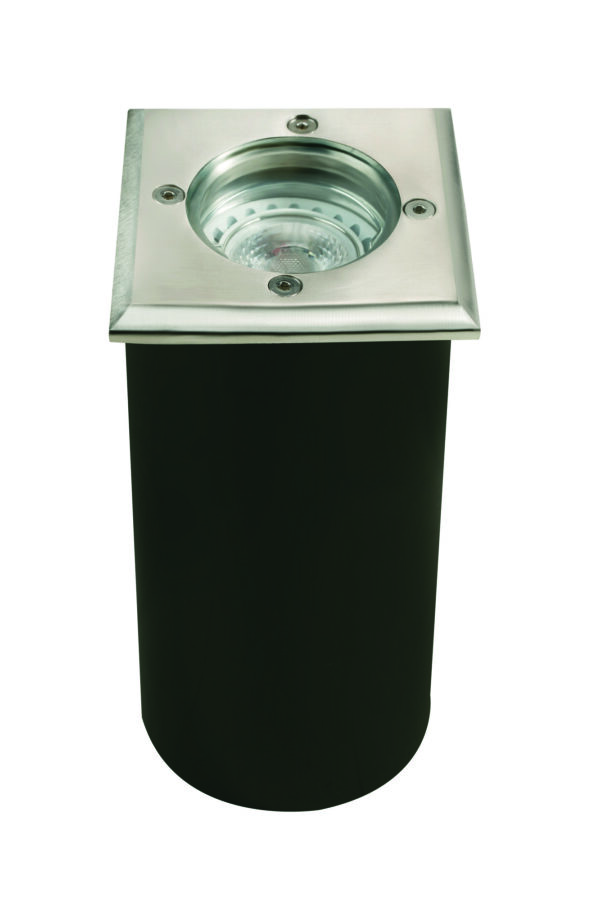

316 Marine Grade Stainless Steel, square faceplate Well Light, housed in a PVC sleeve.
Material: Stainless Steel
Description: Well Light, with Stainless Steel Faceplate
Lamp Type: MR-16
Mounting Supplied: Direct Burial
Grade: Architectural
Dimensions
Size: 3⅜” Dia x 7¼” Deep
Ship Weight LBS: 4
Downloads
Housing : Steel faceplate fitted onto aluminum housing, mounted inside a PVC sleeve, providing in-ground fixture support.
FACEPLATE : Stainless Steel faceplate, designed to recess into installed floor.
Lens : Clear, tempered, and heat resistant glass.
Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V, MR-16 LED
Available in 5W Bluetooth mesh smart RGB-WW;
3.5W, 5W, 6W LED or without lamp.
Find lamp tab above for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord.
Wire connector sold separately.
Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details.
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement. Including in-out compartments for multiple connections.
Electrical : Voltage range for BT/LED lamps are 9V-17V. Remote 12 Volt transformer is required, find transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-5W-BT | 1W-5W (7.5VA) | 38º (15º / 60º incld) | Flood standard (SP/ WF incld) | 25-530 | 2200K-5700K | Color Changing | 50,000 | |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-VT | 5 | 45° FL | Flood | 200 | NULL | Violet | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-328 | Stainless Steel | See lamp guide suffix | |
| Example: | CL-328 | ||
