CL-314-NM
CL-314-NM

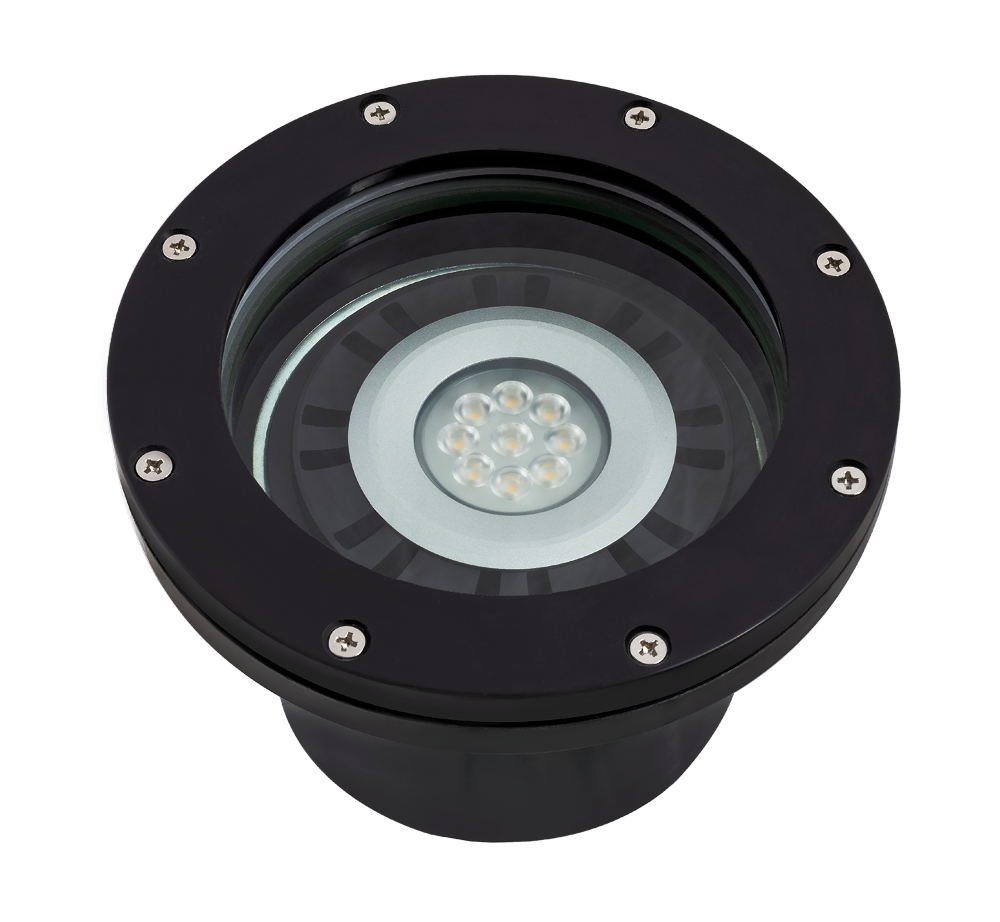

Composite PAR36 Lensed Well Light, finished in black.
Material: Injection molded fiberglass for high UV stability
Description: Lensed PAR36 Well Light
Lamp Type: PAR-36
Mounting Supplied: In-ground direct burial or concrete encasement
Grade: Value

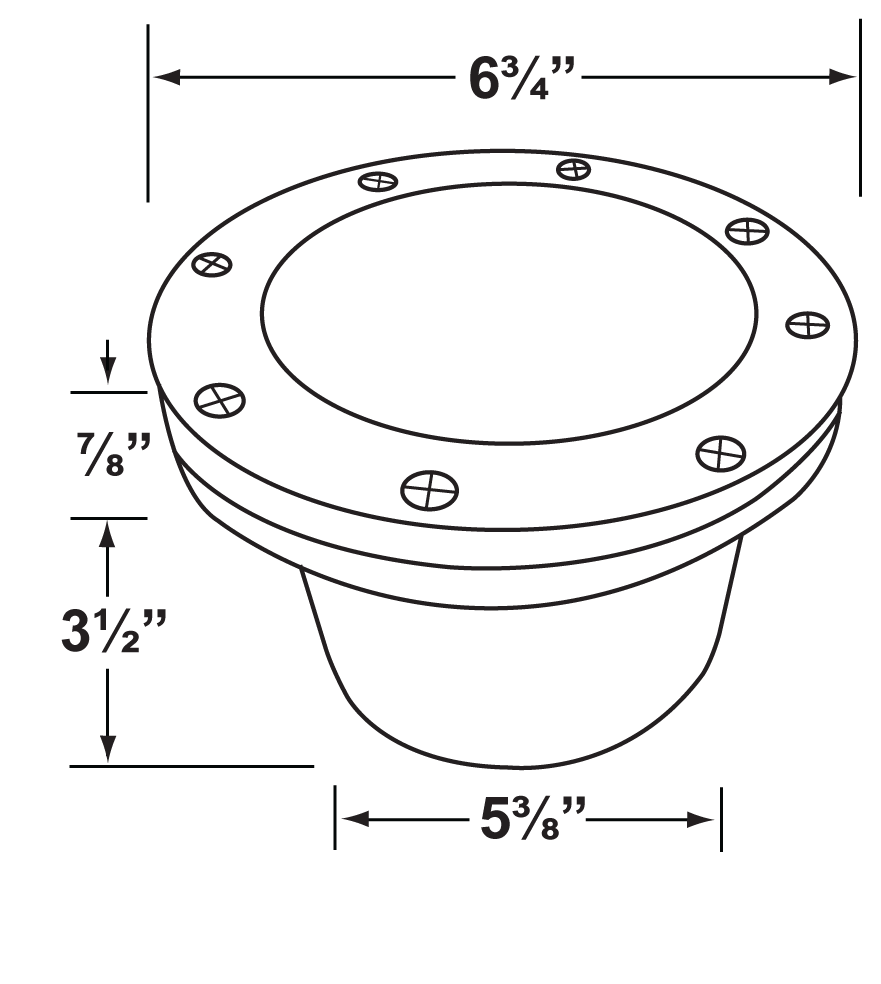

Dimensions
Size: 6¾" Dia x 3½" Deep
Ship Weight LBS: 3
Downloads
Housing : Injection molded fiberglass for high UV stability.
Lens : Clear, tempered, and heat resistant glass.
Socket : Loose, top grade screw-in terminal.

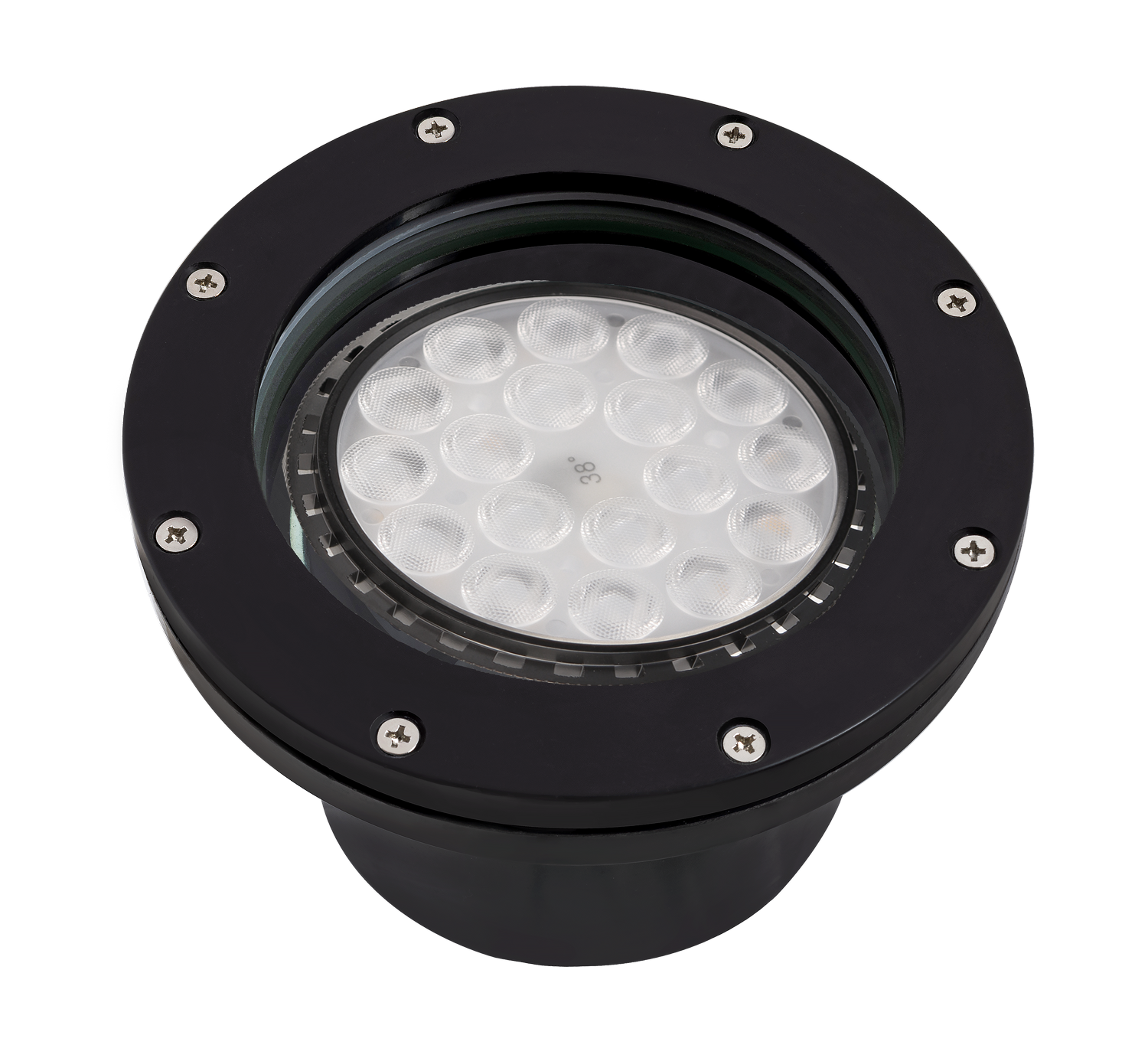

Lamp : 12V, PAR36 LED
Available in 15W Bluetooth mesh smart RGB-WW, or CCT; 5 / 10 / 15W (adjustable), 6W economy LED or without lamp. See Lamp tab for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SJT-W direct burial cord, prewired with a 3ft 18-2 SJT-W direct burial cord.
Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See Accessories for details
Mounting : In-ground direct burial or concrete encasement
Electrical : A remote 12V transformer is required. Visit the transformers page for our line of options. Voltage range for lamps are 9-17V. Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : Limited one (1) year warranty on fixture against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED36-15W-CCT | 0.2W-15W | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K CCT | Tunable White | 50,000 | 10 Watts Halogen |
| L-ED36-15W-BT | 1-15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K | Color Changing | 50,000 | 100 Watts Halogen |
| L-ED36-15W-ADJ | 5/10/15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 450/800/1200 | 2000K-3000K | White | 50,000 | 40/75/100 Watt Halogen |
| L-ED36-6WEC-FL-3K | 6W | 38º FL | Flood | 700LM | 3000K | Cool White | 50,000 | 35W |
| L-ED36-6WEC-FL | 6W | 38º FL | Flood | 630 | 2700K | Warm White | 50,000 | 35W |
| L-ED36-6W-FL | 6 | 45° FL | Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-6W-WF | 6 | 60° WF | Wide Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-13W-FL | 13 | 45° FL | Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED36-13W-WF | 13 | 60° WF | Wide Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-314-NM | Black | See lamp guide suffix | |
| Example: | CL-314-NM | ||
