CL-313
CL-313

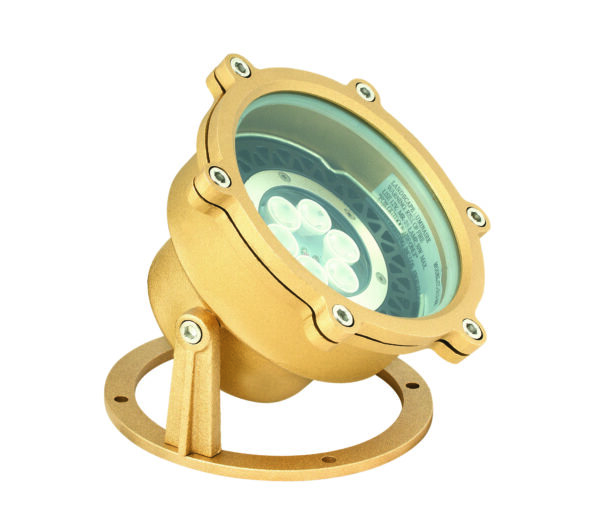

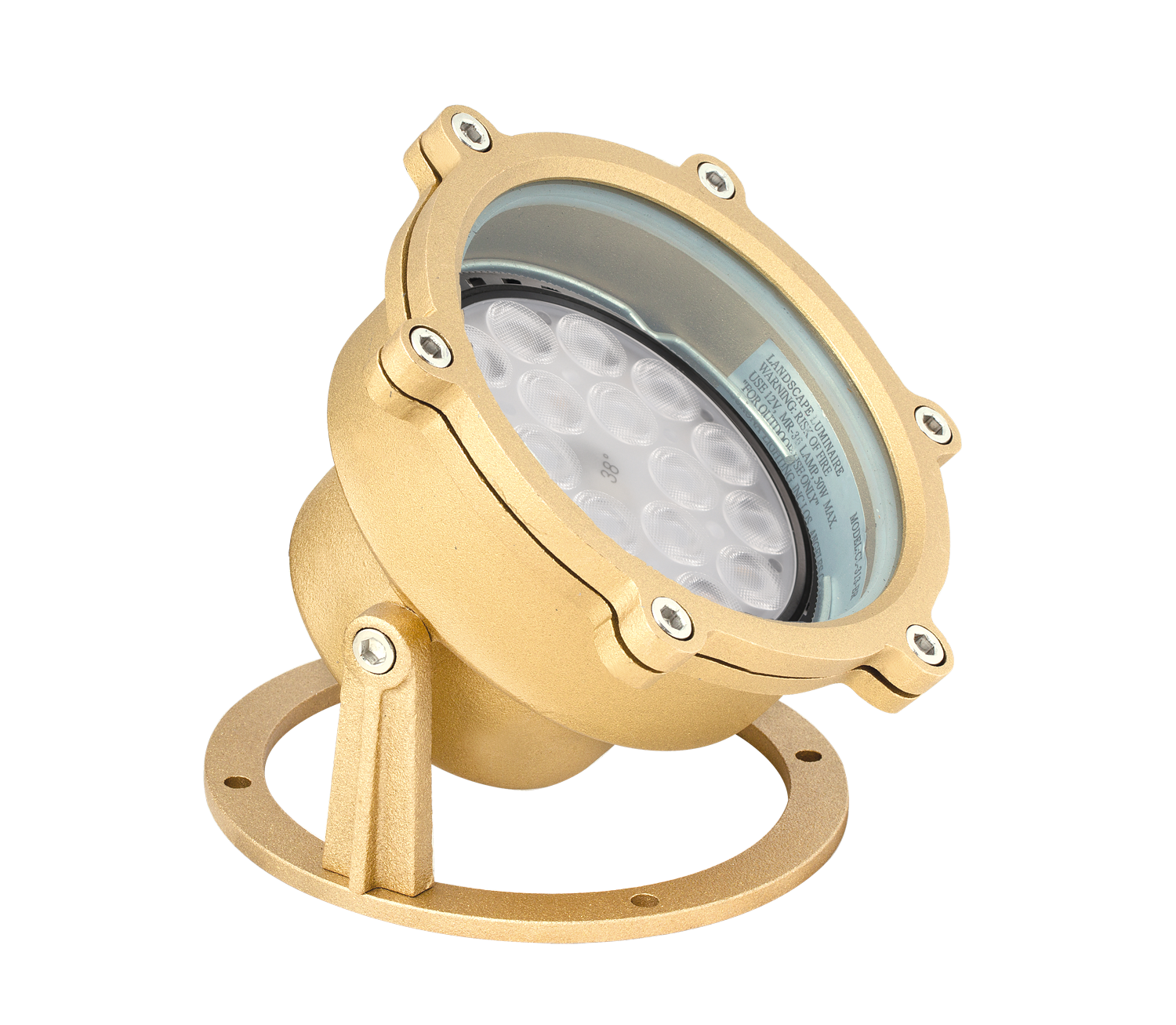

Brass PAR36 Flood Underwater Light, with 30′ Cord available finished in Natural Brass.
Material: Natural Brass
Description: Brass lensed underwater flood light, 30’ cord
Lamp Type: PAR-36
Mounting Supplied: Brass Base
Grade: Architectural

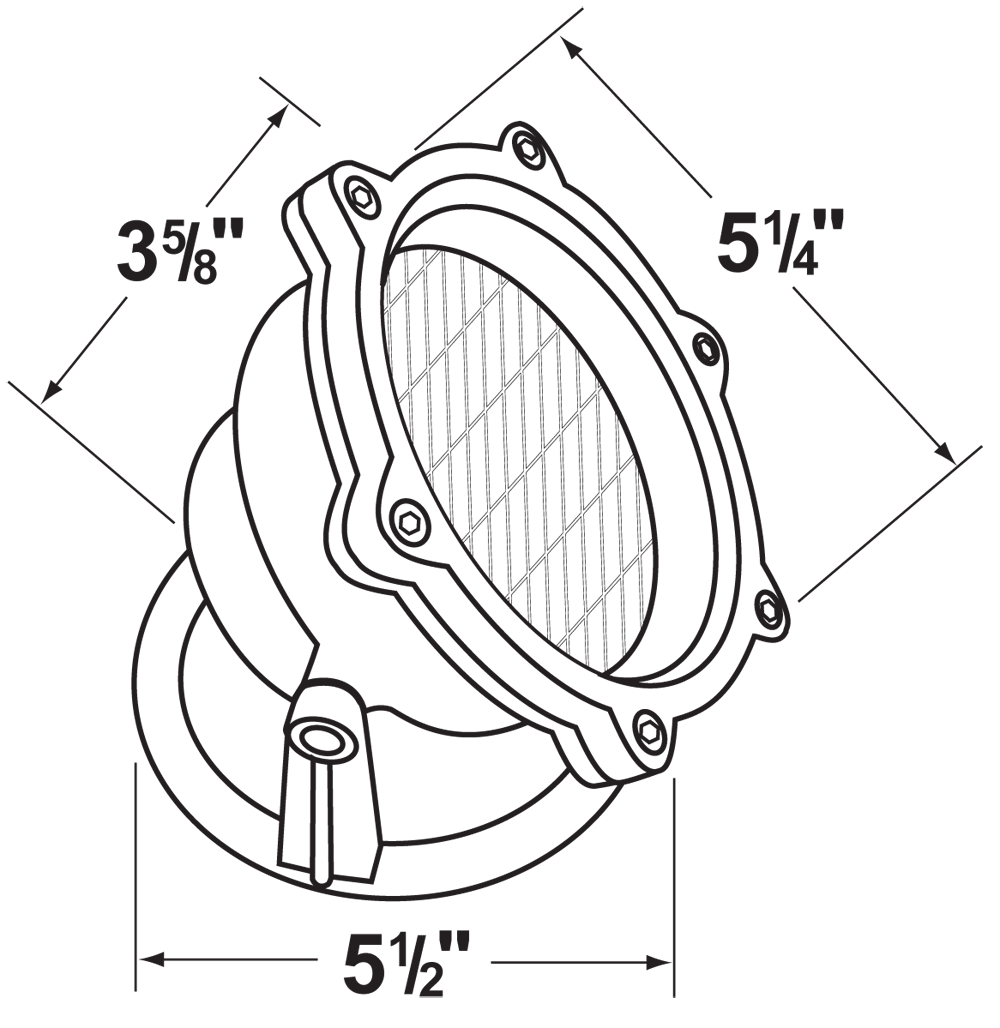

Dimensions
Size: 5¼” Dia x 3⅝” Deep
Ship Weight LBS: 8
Downloads
Housing : Corrosion resistant cast brass.
Lens : Clear, tempered, and heat resistant glass.
Socket : Top grade fixed ceramic bi-pin socket.
Lamp : 12V, PAR36 LED Available in 6W, 10W, 13W LED or without lamp. Find Lamps tab above for more information. Please note, fixture is not compatible with RGB-WW color changing lamps.
Wiring : Fixture is prewired with 18-2 SJT-W water resistant cord. The standard cord length is 30ft. Additional cord lengths can also be supplied upon request.
Mounting : Fully adjustable arms with solid brass thumb screws to provide light aiming. Fixture is mounted on a heavy duty brass bracket for firm and stable underwater placements.
Electrical : A remote 12V transformer is required. See transformer page for a variety of options. Voltage range for LED are 9-24V. Proper grease/lubricant is suggested on threaded parts during installation process. Visit the transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED36-15W-BT | 1-15 | 38º (15º / 60º incld) | Flood standard (SP/ WF incld) | 25-1200 | 2200K-5700K | Color Changing | 50,000 | |
| L-ED36-6W-FL | 6 | 45° FL | Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-6W-WF | 6 | 60° WF | Wide Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-10W-WF | 10 | 60° WF | Wide Flood | 800 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED36-10W-FL | 10 | 45° FL | Flood | 800 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED36-13W-FL | 13 | 45° FL | Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED36-13W-WF | 13 | 60° WF | Wide Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-313 | Natural Brass | See lamp guide suffix | |
| Example: | CL-313 | ||
