CL-287
CL-287

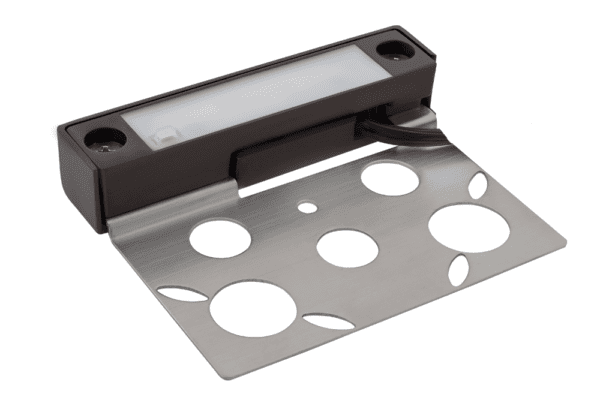

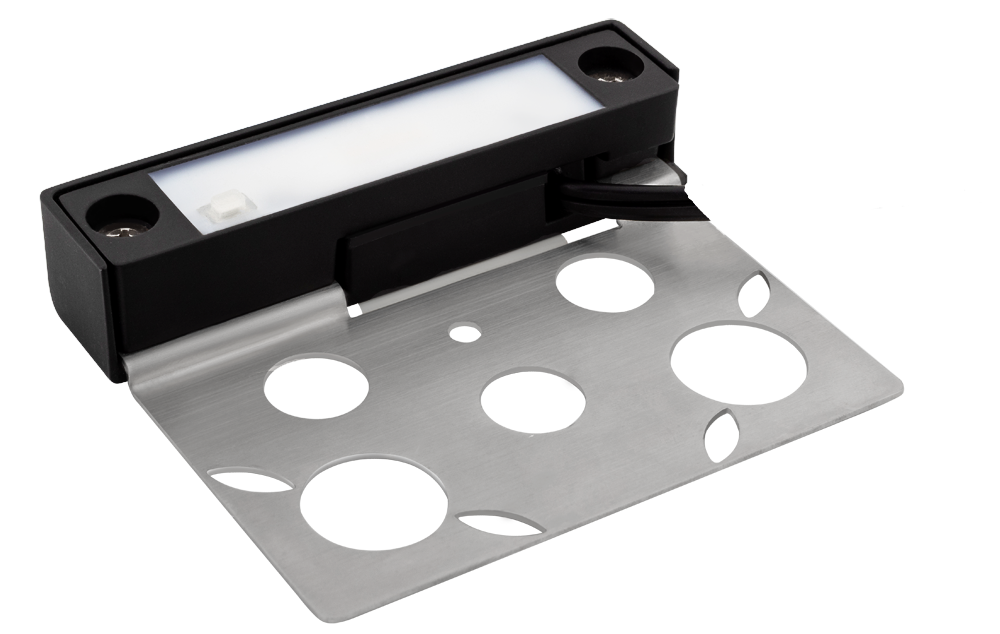

Aluminum 4″ 3W LED Rail Light, with color temperature control switch 2700K/3000K. Finished in Black or Bronze.
Material: Die-cast aluminum. fully potted.
Description: 4" Rail Light 2700K/3000K Color Temp, available in Black or Bronze. Integrated LED. 2700K/3000K Switch
Lamp Type: Replaceable LED capsule.
Lamp Supplied: 2W LED
Mounting Supplied: Stainless Steel mounting bracket. Additional shorter mounting brackets (small and “L” shape) provided. Supplied with wall anchors and screws.
Grade: Architectural

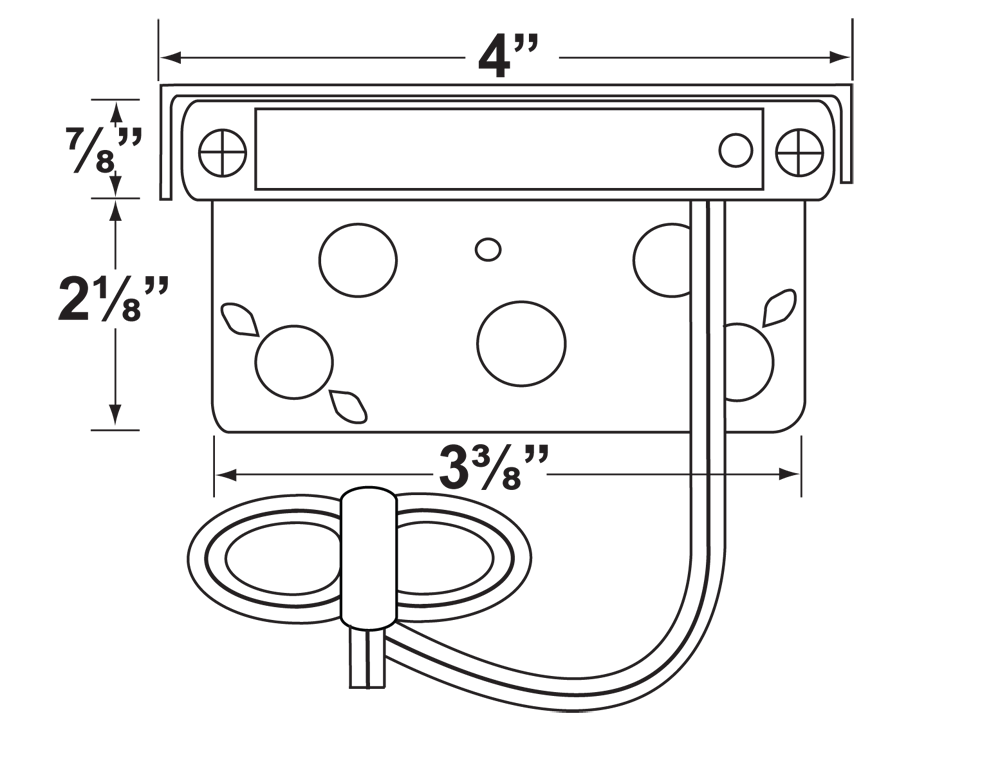

Dimensions
Size: 4" W x 3" L
Ship Weight LBS: 0.53
Downloads
Housing : Die-cast aluminum, fully potted.
Lens : Frosted plastic lens
Socket : Replaceable LED Capsule.
Lamp : Integrated LED Strip (4 Chips), Wattage: 2W, Beam Spread: 120º. Light Output: 120 Lumens Color Temperature: 2700K/3000K adjustable with Push button. Halogen Equivalent: 10W.
Wiring : Fixture is prewired with a 10-ft 18-2 direct burial cord, pre-stripped for easy connection, wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details.
Mounting : Stainless Steel mounting bracket is removable for further applications. Break off corners for easy installation. Additional shorter mounting brackets (small and “L” shape) provided. Supplied with wall anchors and screws.
Electrical : 2W LED is dimmable. A remote 12V magnetic transformer is required, visit 'Transformers' page for our line of options. Not for use with electronic transformers.
Operating Voltage: 9-17V AC & DC. CRI >80. Ambient Temperature: -22º F - +131º F
WARRANTY : 10 year warranty, with a rated life of 50,000 hours.
No matching lamps found.
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-287 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-287 | ||
