CL-219

CL-219

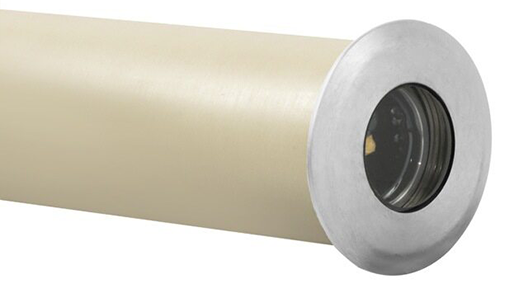

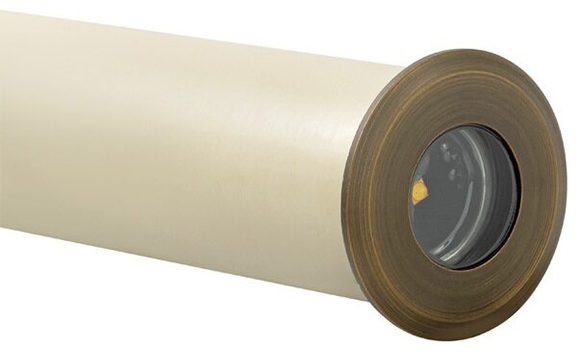

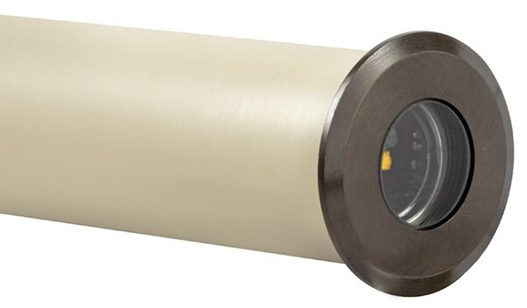

Integrated LED Multi-purpose Specialty Light with a Brass Lensed Faceplate, housed in PVC, finished in Antique Bronze, Gun Metal or Silver Plated.

Material: Brass
Description: Cast Brass Integrated LED lensed multi-purpose Specialty Light
Lamp Type: Integrated LED
Light Source : 3W Integrated LED
Mounting Supplied: PVC Sleeve
Grade: Architectural

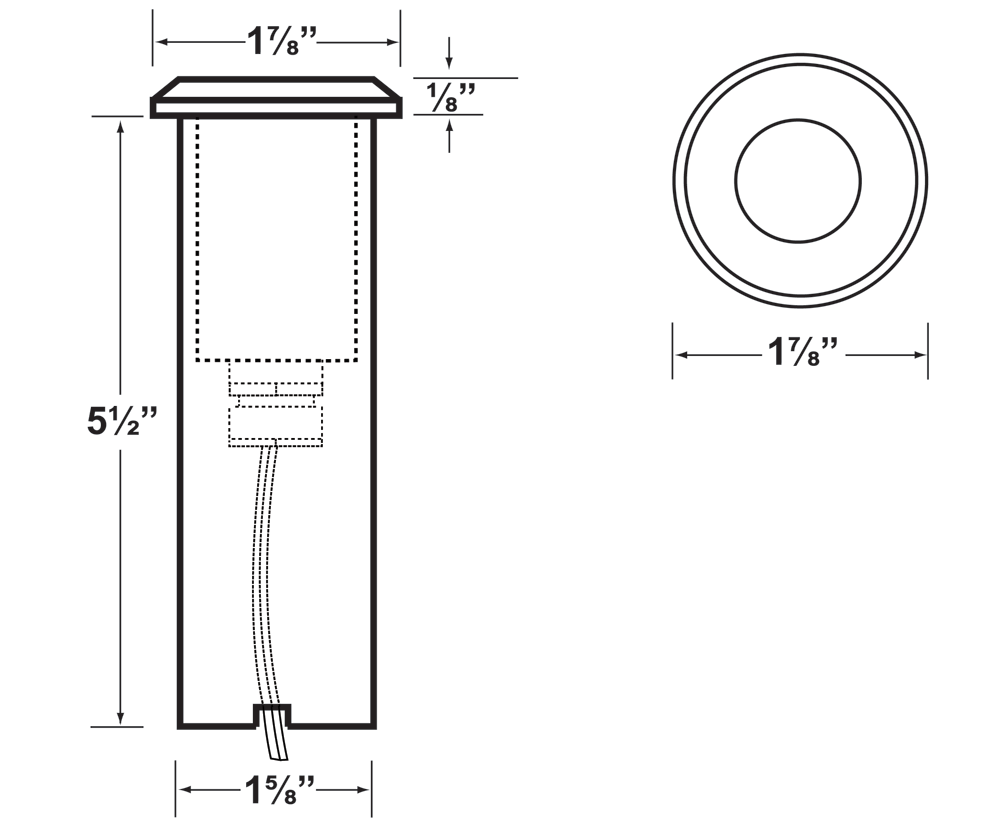

Dimensions

Size: 1⅞” Dia x 5½” Deep
Ship Weight LBS: 1

Downloads

Document NamePDF File
CL-219-AB Specification Sheet download
CL-219-GM Specification Sheet download
CL-219-SI Specification Sheet download
CL-219 Series Installation Instructions download
Housing : Heavy duty resistant cast brass housed in a PVC sleeve.
Lens : Clear and heat resistant tempered flat glass with 7 Color Filters included.
Socket : Integrated CREE LED module.
Lamp : 12V, 3 Watt, 210 lumens, 120º beam spread, 3000K, 20W halogen equivalent.
Wiring : Fixture is prewired with a 18-2 20ft SPT-1W direct burial cord, pre-stripped for easy connection. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Recessed flush mount (Multi-Purpose).
APPLICATIONS : Best used in concrete, brick, or other masonry surfaces and small fountains.
Electrical : Integrated CREE LED module is dimmable. A remote 12V magnetic transformer is required. Visit the transformers page for our line of options. Not for use with electronic transformers. Proper grease/lubricant is suggested on threaded parts during installation process
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects.

No matching lamps found.

Cable Connector

Part # Description
CX-LOC Quick-Locking Wire Connector, 2 pack

Mounting Canopies

Part # Description
CX-705B Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709 Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709B Brass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-718 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719B Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721 Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721B Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722 Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722B Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723 Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723B Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Tools

Part # Description
CX-237 Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340
Fixture Finish Finish Color Lamp
CL-219Antique BronzeSee lamp guide suffix
Gun Metal
Silver Plated
Example: CL-219
