CL-205
CL-205

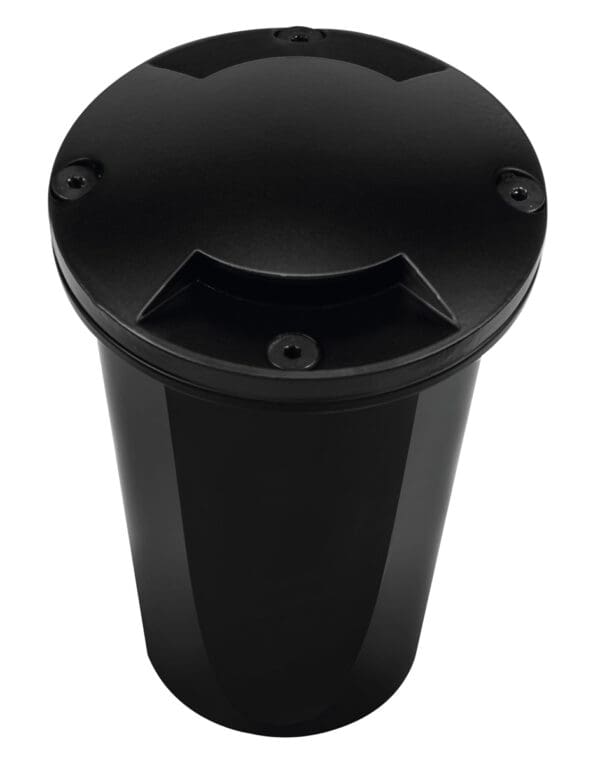

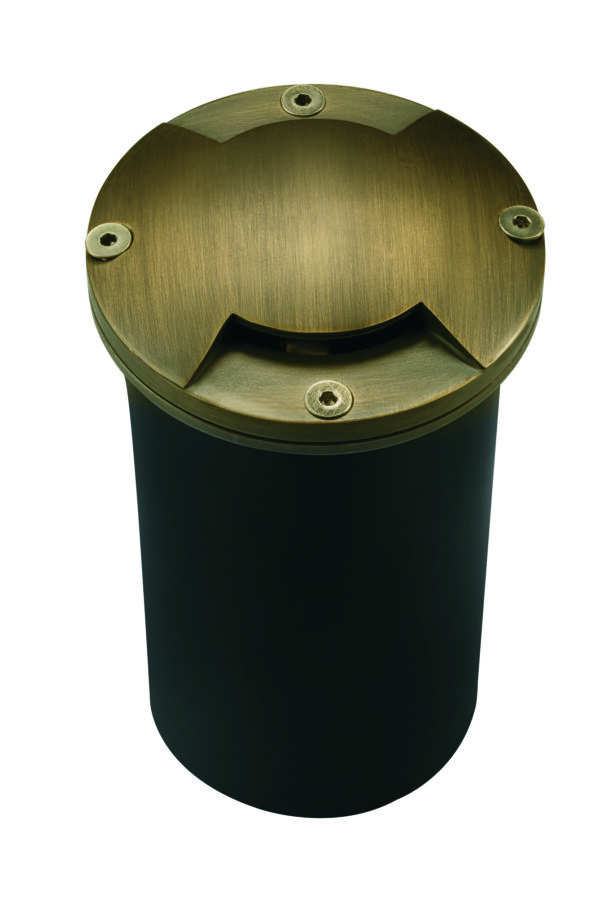

Brass 90º Opposing Marker Light mounted in a PVC sleeve with stainless steel retention clips. Finished in either Antique Bronze or Black Brass.
Material: Brass
Description: Brass 90º Opposing Marker Well Light
Lamp Type: MR-16
Mounting Supplied: Direct Burial
Grade: Architectural

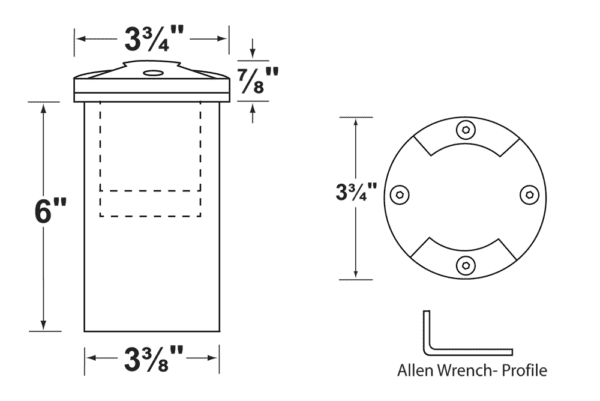

Dimensions
Size: 3¾” W x 6⅞” H
Ship Weight LBS: 2
Downloads
Housing : Cast brass fixture mounted with stainless steel retention clips inside PVC sleeve.
FACEPLATE : Solid brass faceplate with 90° light output on two opposing sides.
Lens : Clear, tempered and heat resistant raised flat glass.
Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V, MR-16 LED Available in 5W Bluetooth mesh smart RGB-WW; 3.5W, 5W, 6W LED or without lamp. Find lamp tab above for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately.
Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement.
Electrical : A remote 12V transformer is required. See transformers page for our line of options . Visit the transformers page for our line of options. Voltage range for BT/LED lamps are 9V-17V. Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-5W-BT | 1W-5W (7.5VA) | 38º (15º / 60º incld) | Flood standard (SP/ WF incld) | 25-530 | 2200K-5700K | Color Changing | 50,000 | |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-VT | 5 | 45° FL | Flood | 200 | NULL | Violet | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-205 | Antique Bronze | See lamp guide suffix | |
| Black Brass | |||
| Example: | CL-205 | ||
