CL-370B

CL-370B

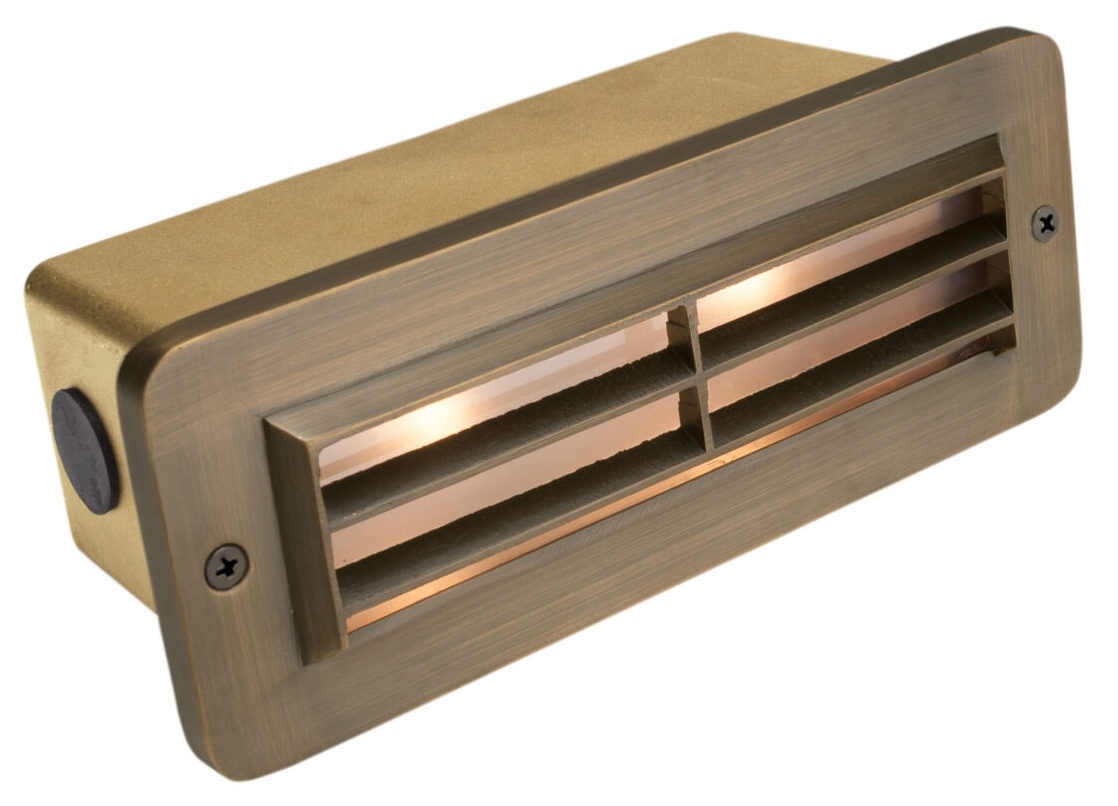

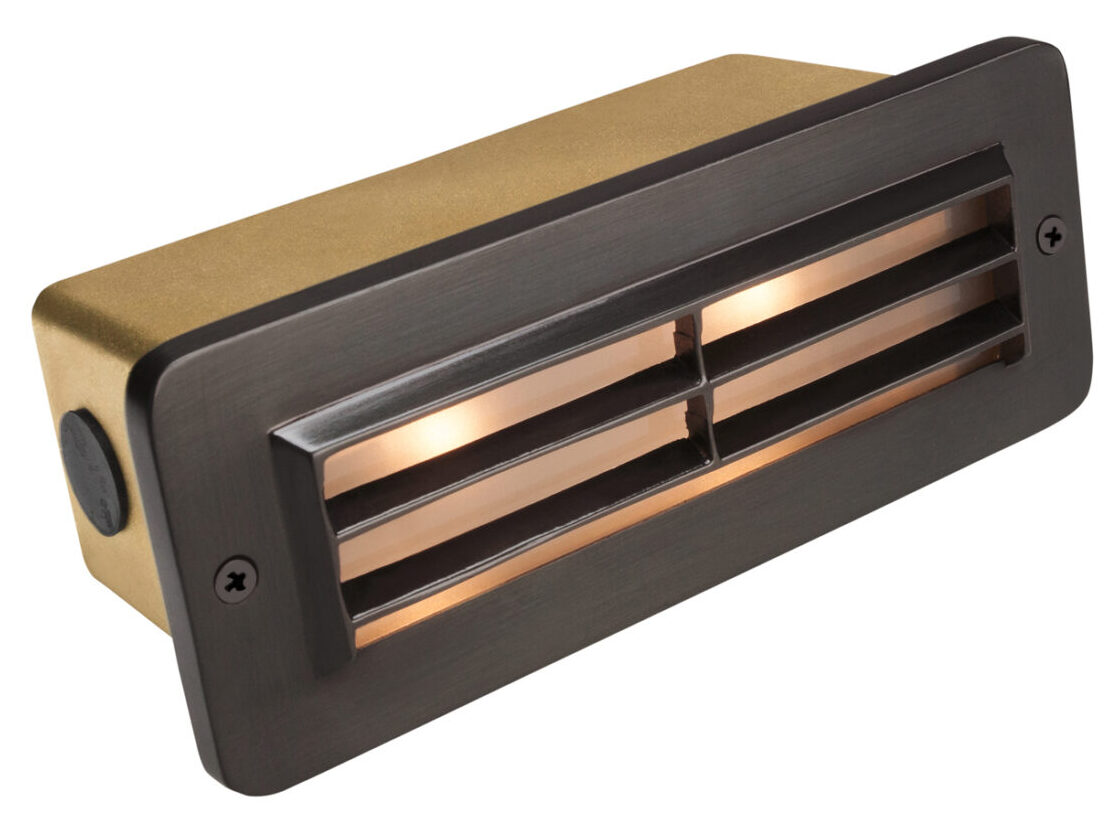

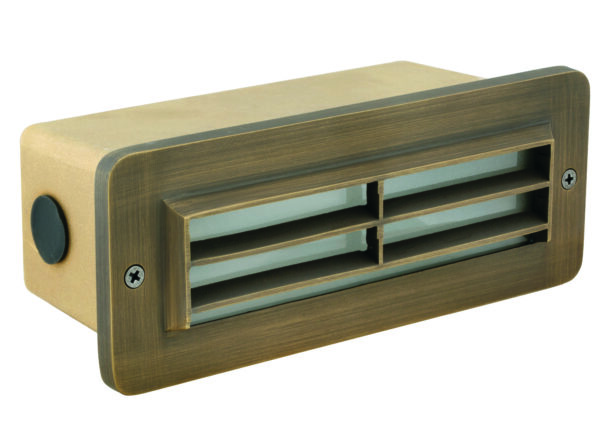

Louvered Brick Light available in Brass with Antique Bronze & Gun Metal color finishes.

Material: Brass
Style: Louvered Brick Light
Description: 3 Louvered Solid Brass Boxed Step Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural

Dimensions

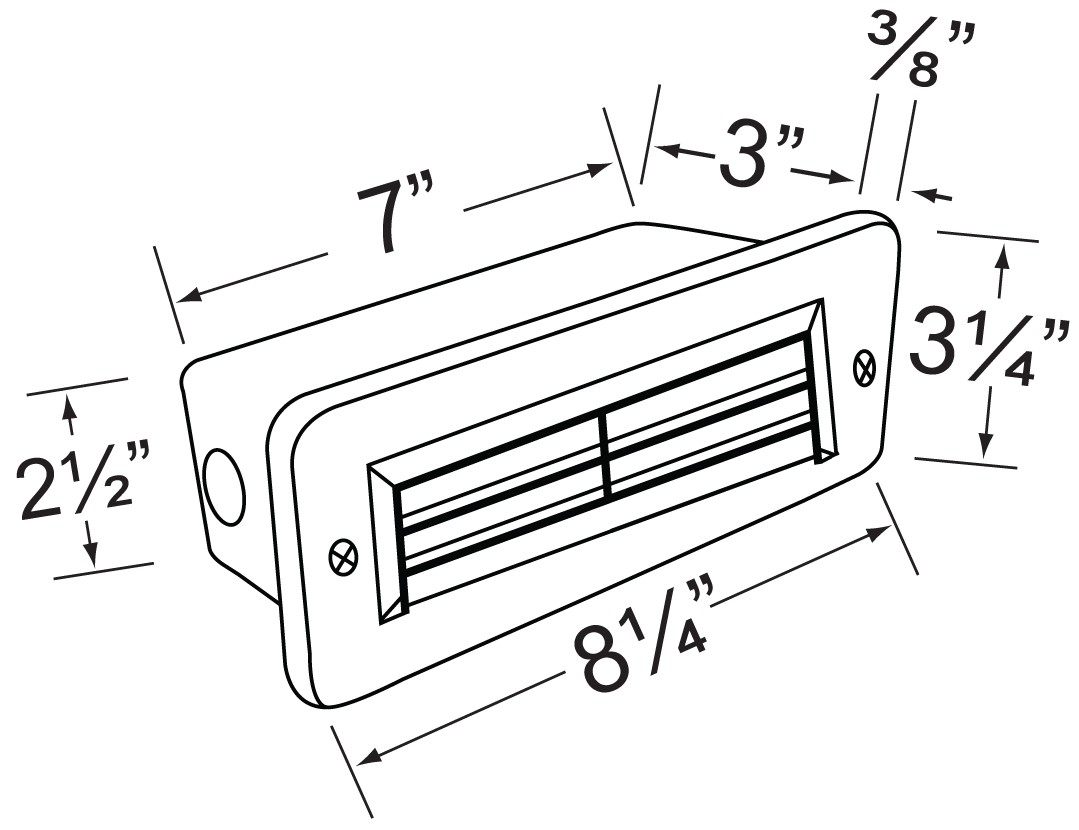

Dimensions: 8¼” W x 3¼” H (Faceplate)
Ship Wight LBS: 4

Spec Sheet

Product NameSpec Sheet
CL-370B-AB download
CL-370B-GM download
Housing : Heavy duty corrosion resistant cast brass.
Lens : Frosted and heat resistant glass.
Fixture Socket : Two S.C. Bayonet socket, attached to aluminum reflector.
Lamp : 12V, SCB, 27W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold seperately. Silicone filled wire nut (CX-854) are availble.
Gasket: Silicone gasket seals faceplate to housing. Providing weather tight protection.
Mounting : Recessed mount back box, with 3x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-EDBA-2W2360°360 Deg.2002700KWarm White25,00020 Watt Halogen
L-EDBA-2W-3K2360°360 Deg.2103000KCool White25,00020 Watt Halogen
L-EDBA-AM2360°360 Deg.1702000KAmber25,00020 Watt Halogen
L-EDBA-2.5W2.5180°180 Deg.2402700KWarm White25,00035 Watt Halogen
L-EDBA-2.5W-3K2.5180°180 Deg.2503000KCool White25,00020 Watt Halogen
Fixture Finish Finish Color Lamp
CL-370BAntique BronzeSee lamp guide suffix
Gun Metal
Example: CL-370B
